LED Langfeldleuchte IMPACTO / IMPACTO smart

LED linear light IMPACTO / IMPACTO smart

Robust damp-proof luminaire with HACCP certificate

The LED linear luminaire IMPACTO This industrial moisture-proof luminaire with HACCP certification for food safety features a flexible design that ensures future-proofing and offers compelling advantages. Mountable on walls or ceilings, or as a pendant version, this versatile luminaire, classified as IP65 and IK08, offers a wide range of applications, further enhanced by versions with DALI dimming and sensors.

Besides its simple installation, the light fixture allows for quick and easy adjustment of power and color temperature. The end caps, which provide access to the 5- or 7-pin through-wiring and the pull-out LED module, are quick and easy to remove. The EL-certified driver and color temperature switch are located on the back of the module. Interchangeable components allow for flexible modification or expansion of the light fixture.

As a variant with built-in motion sensor and daylight detection, IMPACTO smart Intelligent, efficient use of light. Variable settings for orientation light afterglow duration and dimming levels can be quickly and easily adjusted using DIP switches.

Ceiling, wall and pendant mounting (with optional accessories) possible.

Highlights Compact

LED Langfeldleuchte IMPACTO mit HACCP-Zertifikat für Sicherheit bei Lebensmitteln

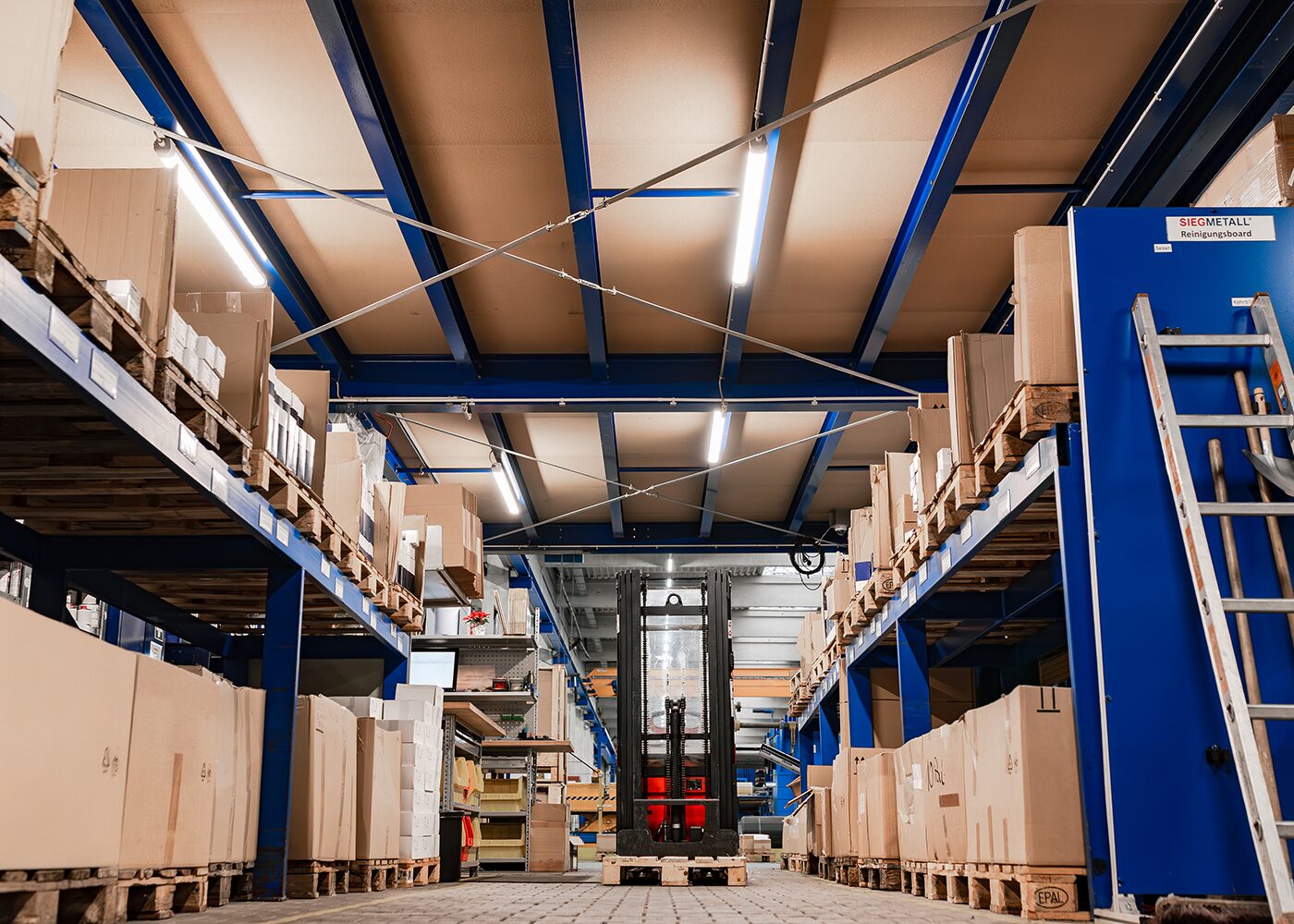

Anwendung LED Langefeldleuchte IMPACTO bzw IMPACTO smart plus in Lagerhalle

Anwendung industrielle Arbeitsstätte LED Langfeldleuchte IMPACTO

Anwendung Flur LED Langfeldleuchte IMPACTO smart mit Lichtschaltung bei Bewegungserkennung durch gehende Person — IMAPCTO smart with motion detection sensor

LED Langfeldleuchte IMPACTO mit Icon HACCP – Zertifizierte Lebensmittelsicherheit

Öffnungsschema Endkappe LED Langfeldleuchte IMPACTO durch Ziehen des Schiebereglers und Drehung — Easy opening of the end cap with just one hand

Explosionsabbildung LED Langfeldleuchte IMPACTO mit herausziehbarem LED-Modul und Icons IP65 und IK08 — Easy interchangeability of components through two independent units: Robust housing + removable LED module

Leistungseinstellung per DIP-Schalter LED Langfeldleuchte IMPACTO

DALI-Variante mit 7-poligen Anschluss LED Langfeldleuchte IMPACTO — DALI variant with 7-pin connection

Einstellmöglichkeiten für Bewegungs- und Tageslichterkennung LED Langfeldleuchte IMPACTO smart

Grafik Beispiel Orientierungslichtfunktion mit 25 % nach 3 Minuten, Ausschaltung nach weiteren 10 Minuten

Flexible system for damp, outdoor and demanding areas (IP 65 / IK 08)
Variety of options through 4 power levels, 3 light colors, 3 lengths, DALI dimming and sensor
Certified food safety with HACCP certificate
High luminous flux up to 160 lm/W, across all power levels
Fully integrated, independent 5- or 7-core through-wiring
NEW: With tool-free phase change via slider
Mounting brackets with reliable vandal protection

IMPACTO

Article no.	Performance	Luminous flux	Light color	Beam angle	Dimming	UGR	Mass	Weight	Price
LS-IC60SW15	30 - 60 W	4800 - 9600 lm	3000 / 4000 / 5000 K	120°	ON / OFF	< 24	1500 x 74 x 80 mm	1.64 kg	Check GH price Inquiries
LS-IC35SW12	19 - 35 W	3040 - 5600 lm	3000 / 4000 / 5000 K	120°	ON / OFF	< 24	1200 x 74 x 80 mm	1.2 kg	Check GH price Inquiries
LS-IC18SW06	11 - 18 W	1760 - 2880 lm	3000 / 4000 / 5000 K	120°	ON / OFF	< 22	600 x 74 x 80 mm	0.7 kg	Check GH price Inquiries
LS-IC60SW15-DA	30 - 60 W	4800 - 9600 lm	3000 / 4000 / 5000 K	120°	DALI	< 24	1500 x 74 x 80 mm	1.64 kg	Check GH price Inquiries
LS-IC35SW12-DA	19 - 35 W	3040 - 5600 lm	3000 / 4000 / 5000 K	120°	DALI	< 24	1200 x 74 x 80 mm	1.2 kg	Check GH price Inquiries
