LED Panel WINDOW Dipling

Special LED panels with the unique “window effect” from Fural

The unique metal ceiling system from Fural bietet – neben der harmonisch geschlossenen Deckenansicht, dem hohen Brandschutz und besten Hygiene- und Akustik-Eigenschaften – den weiteren Vorteil einer schnellen Installation und Zugänglichkeit der einzelnen Deckenelemente. Das in das System integrierte und vollständig vormontierte LED Panel WINDOW Dipling It is equipped with hinge cones for optimal tilting functionality and is simply pressed into the concealed substructure. This "window effect" allows access to the ceiling cavity with a single movement. After opening, the cassettes remain in the clamping profile and can be repositioned as needed.

Various dimming options and a choice of light colors are further highlights of this special LED panel solution. The microprismatic diffuser also ensures fatigue-free working with its low-glare light.

A NOTICE: Please order suitable drivers separately (see specifications)

*Suitable for computer workstations with version UGR < 19.

Highlights Compact

Anwendung Labor mit LED Panel WINDOW Dipling

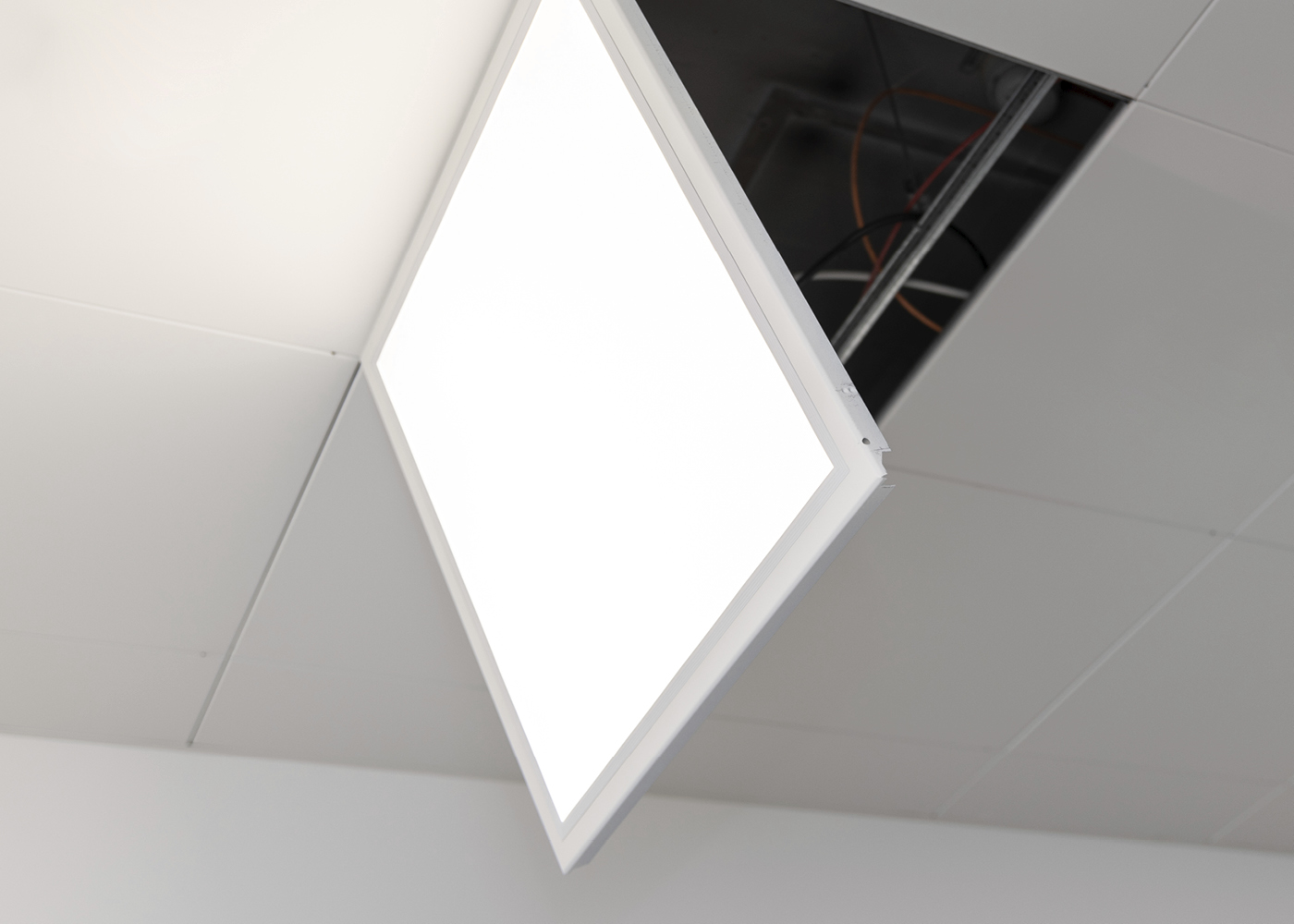

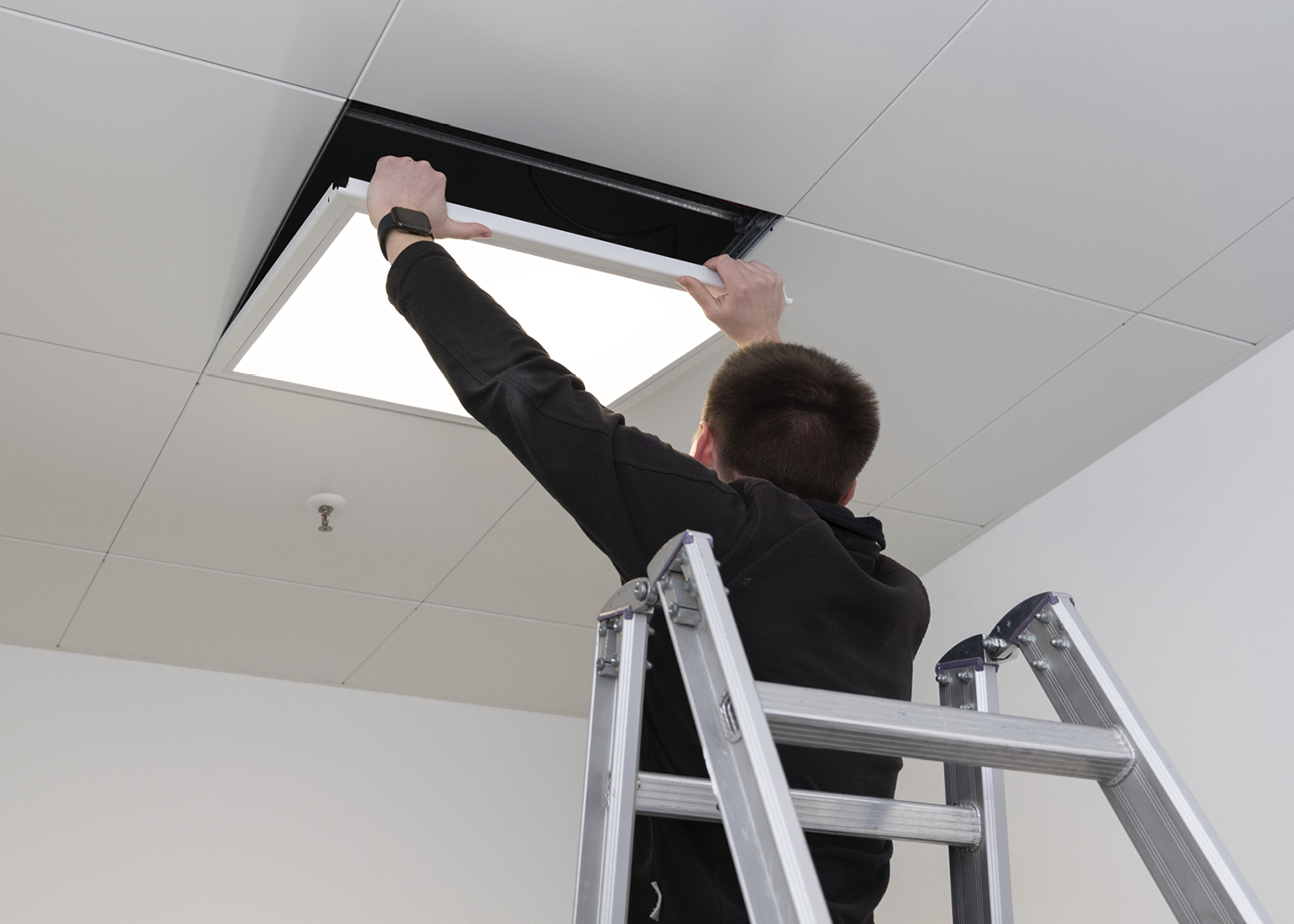

Installateur mit abgeklappten LED Panel WINDOW Dipling — Fast installation and best accessibility

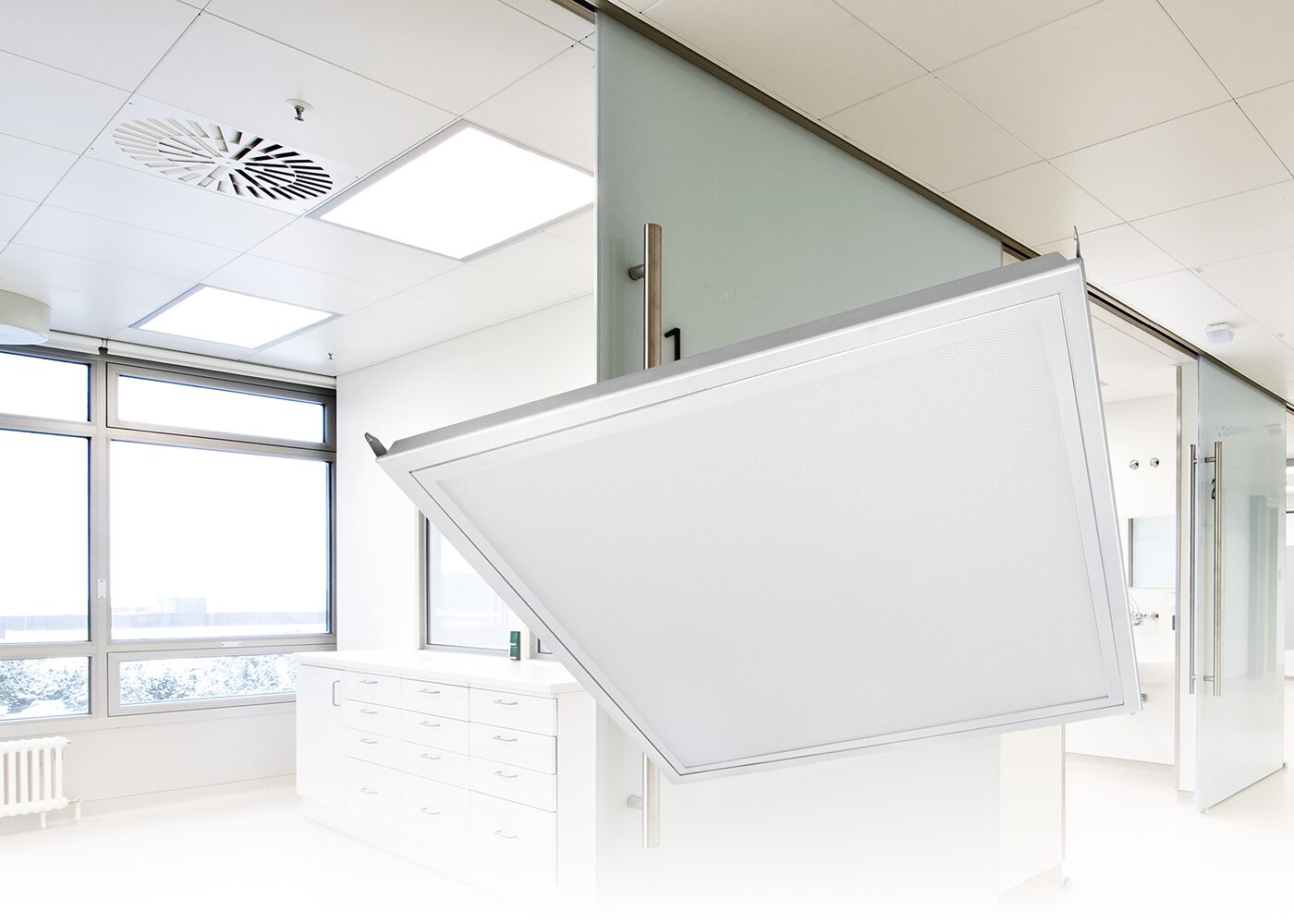

Abgeklapptes LED Panel WINDOW Dipling — Hinge cone for optimal folding function

<divFenstereffekt"" data-category="1" data-lg-size="1400-1000" >

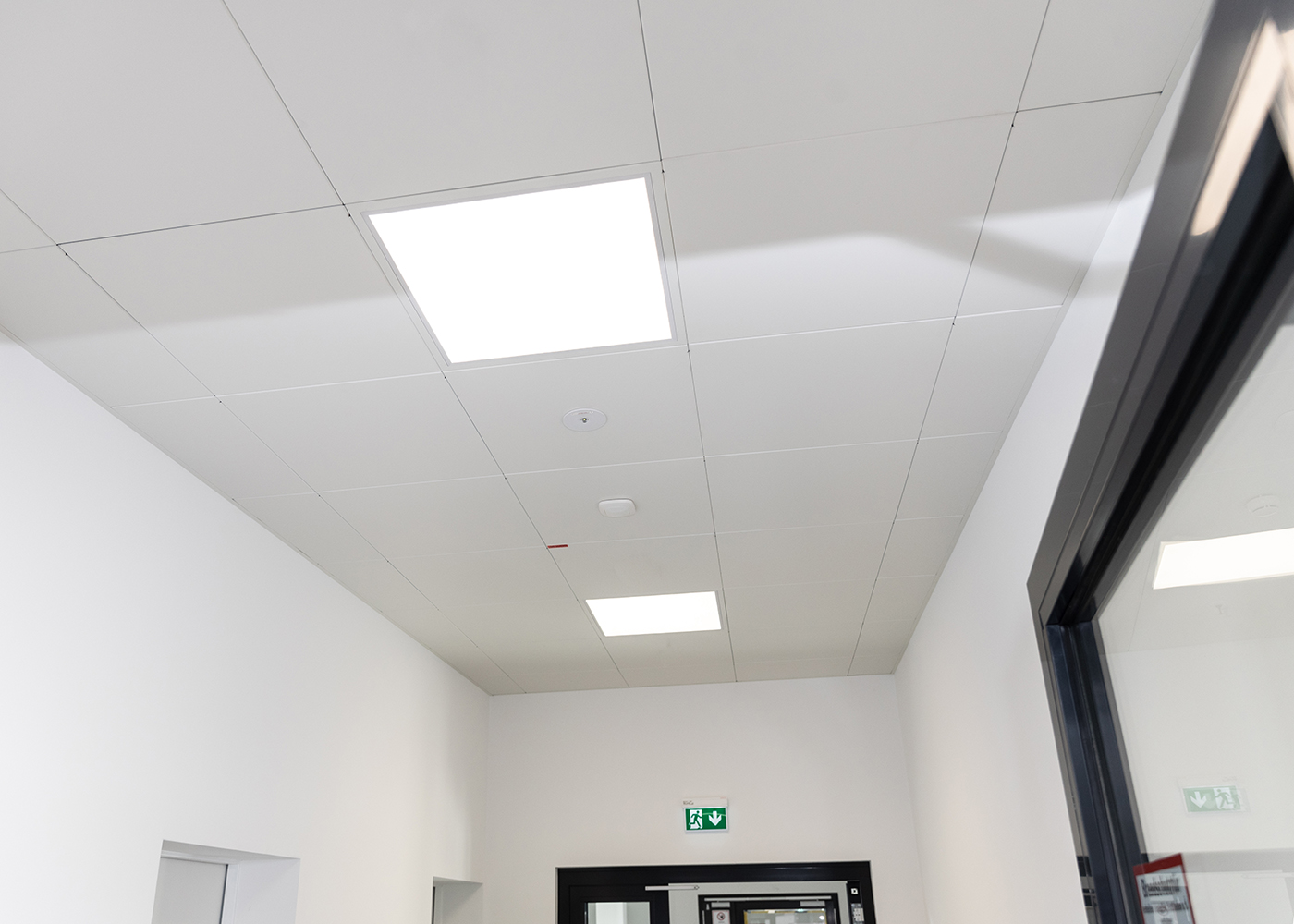

Anwendung Flur LED Panel WINDOW Dipling — The panel with the unique "window effect""

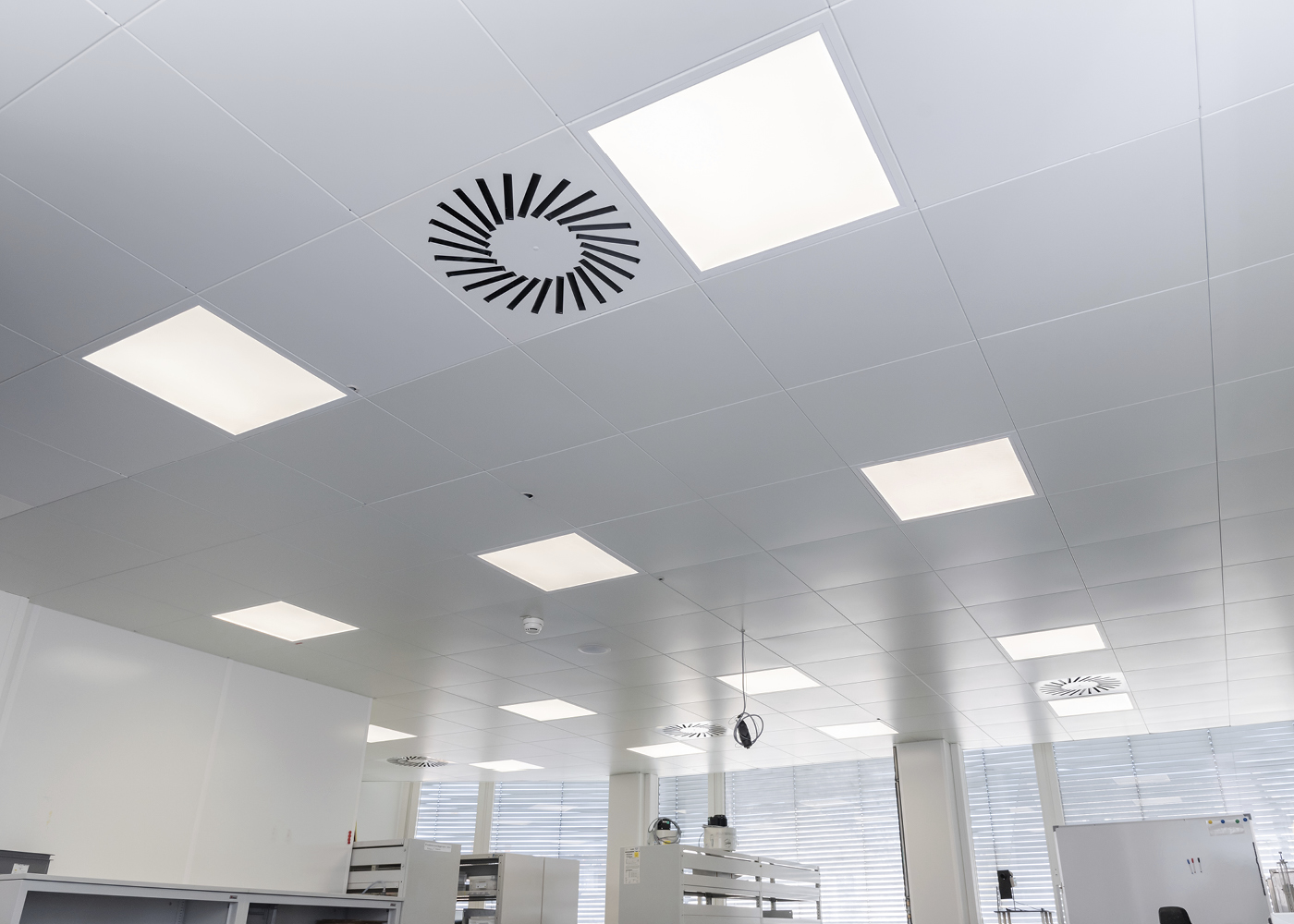

Anwendung Labor LED Panel WINDOW Dipling — Best hygiene properties: Fural metal ceiling system & LED panel WINDOW dipling

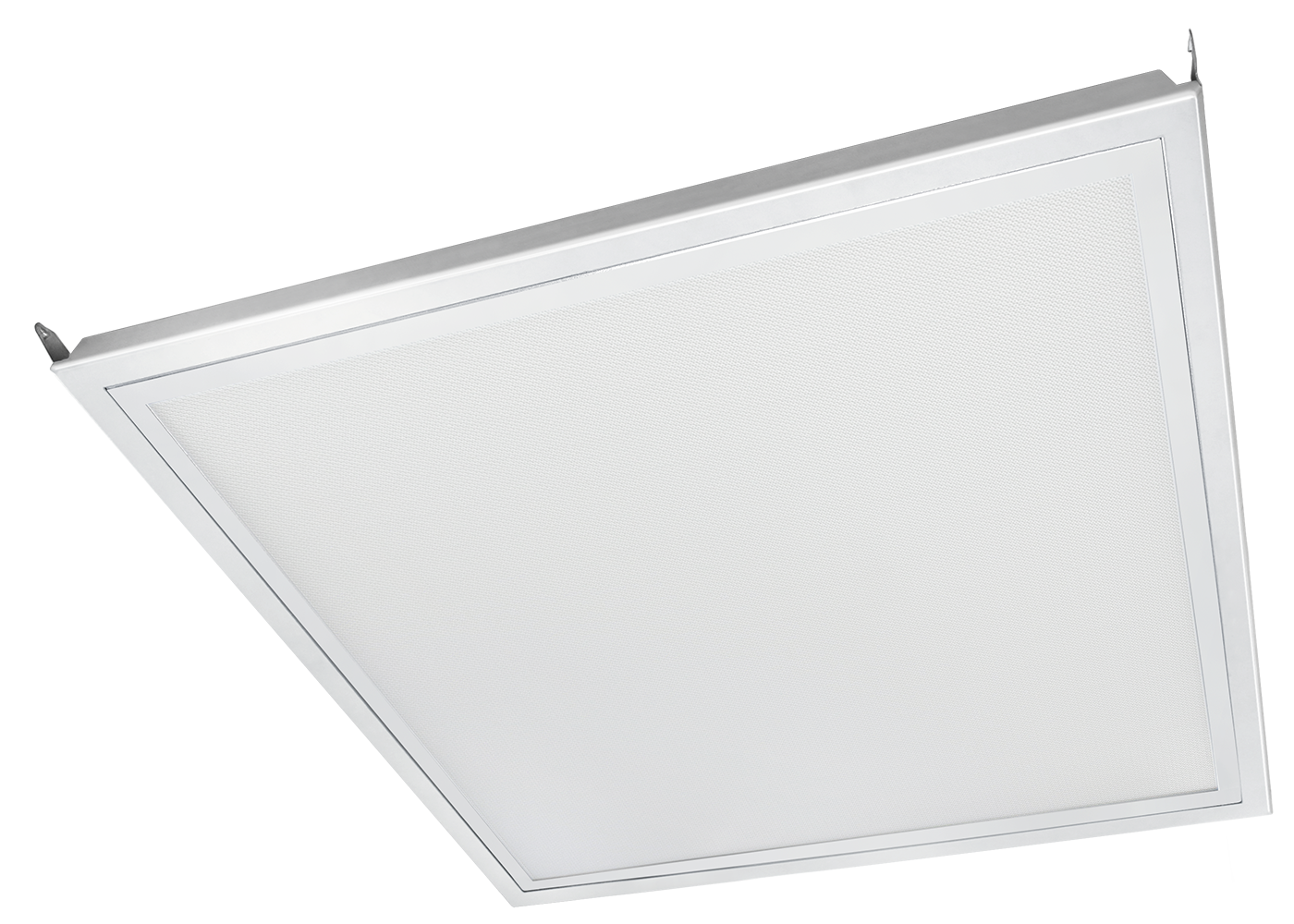

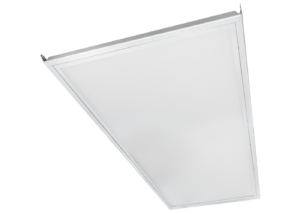

Rechteckiges LED PANEL WINDOW dipling mit FURAL Metallgehäuse und Scharnierkegeln

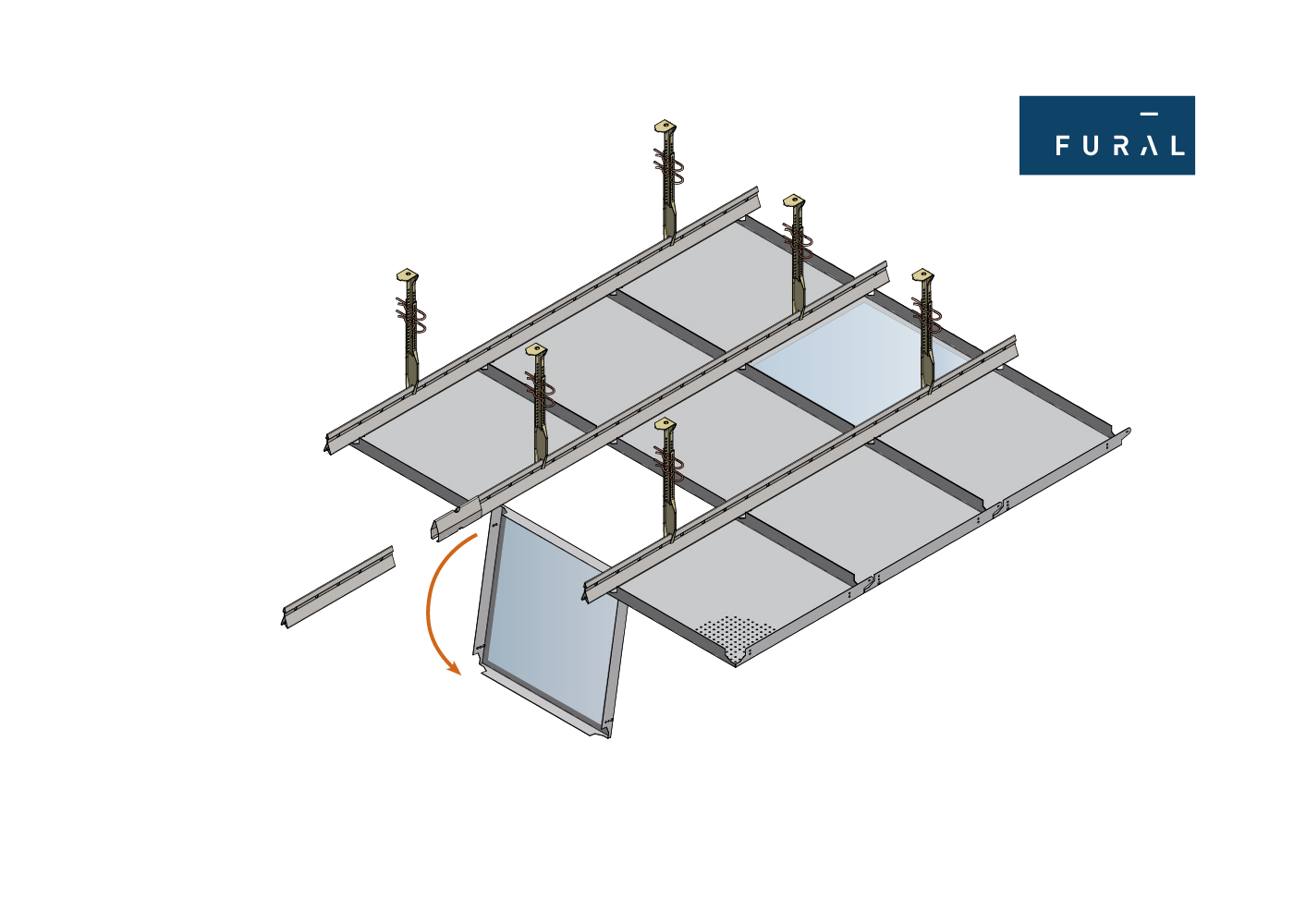

Grafik Fural Deckensystem mit abklappbaren Panel LS-PD40 — Revision capability of each individual cassette for quick access to the ceiling cavity

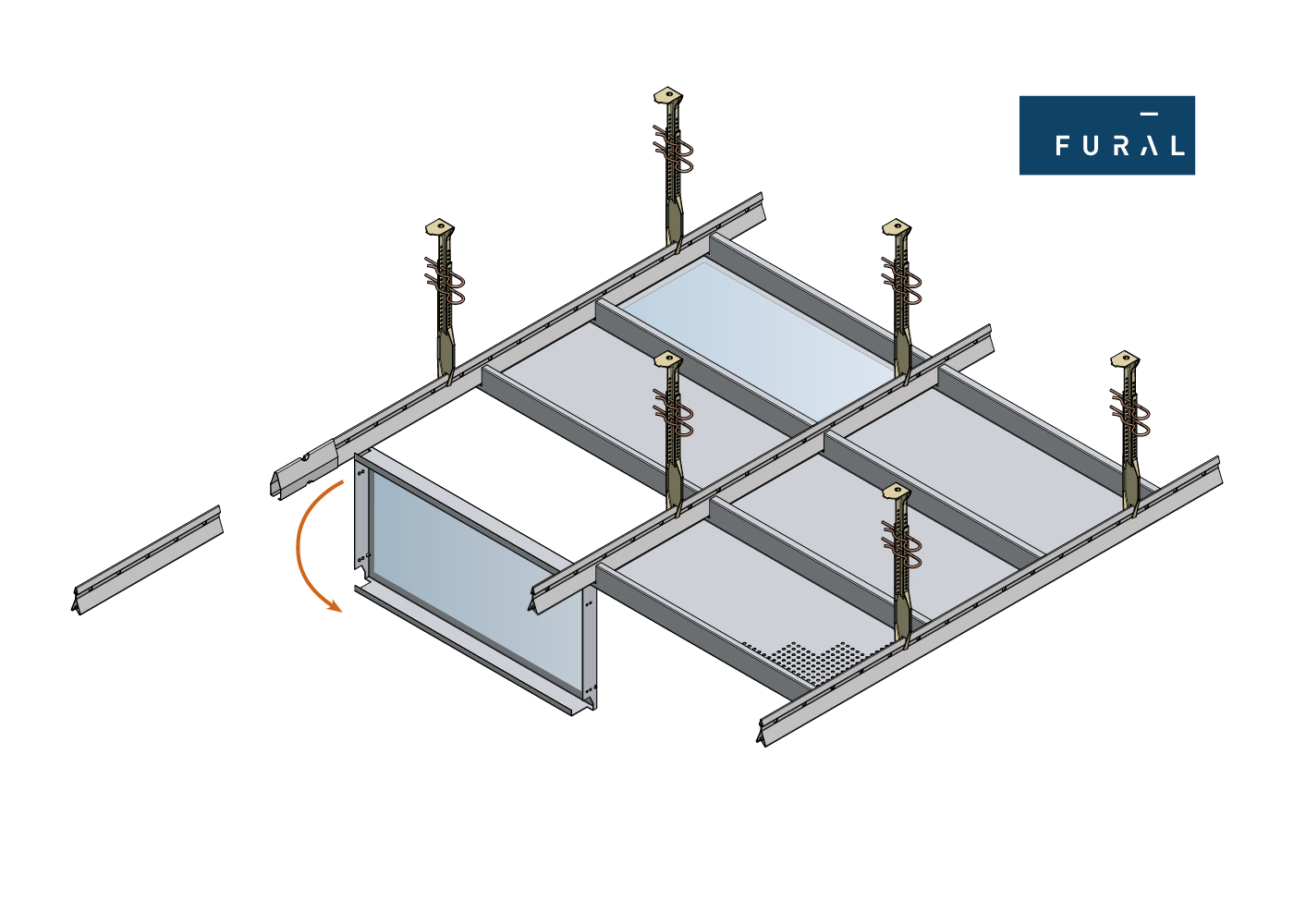

Grafik Fural Deckensystem mit abklappbaren Panel LS-PD60

LED panel with „window effect“ for best accessibility
Suitable for Fural metal ceiling system (type Dipling)
Selection of the light color via slider on the panel
Various dimming options via driver selection
Best hygiene, fire protection and acoustic properties

Article no.	Performance	Luminous flux	Light color	Beam angle	UGR	Dimensions of window cassette	Weight	Price
LS-PD40SW66L	40 W	4400 lm	3000 / 4200 / 5500 K	120°	< 19	625 x 625 x 25 mm	4.6 kg	Check GH price Inquiries
LS-PD60SW126L	60 W	5650 lm	3000 / 4200 / 5500 K	120°	< 22	1200 x 600 x 25 mm	9.2 kg	Check GH price Inquiries

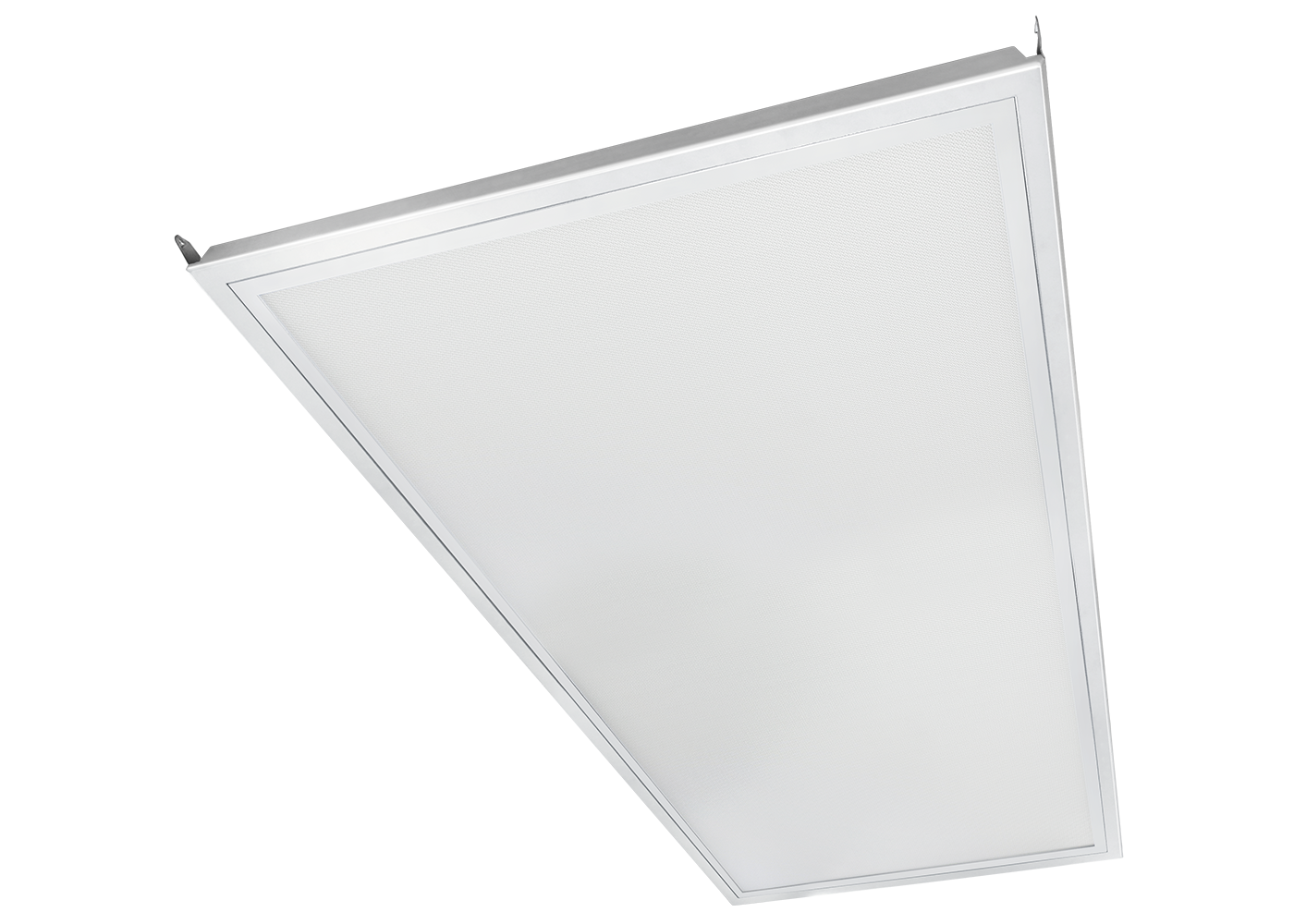

LS-PD60SW125L	60 W	5650 lm	3000 / 4200 / 5500 K	120°	< 22	1250 x 625 x 25 mm	9.2 kg	Check GH price Inquiries

Accesories

Article no.	Designation	Price
LS-BK40M4S	LED 4-step driver DIM4me (40 W)	Check GH price Inquiries
LS-BK60M4S	LED 4-step driver DIM4me (25 W – 60 W)	Check GH price Inquiries
LS-LG40DA	LED driver 0 - 10V / DALI / PUSH / PWM dimming (25 - 40 W)	Check GH price Inquiries
LS-BK40DA	LED driver 1 - 10V / DALI / PUSH dimming (25 - 40 W)	Check GH price Inquiries
LS-BK60DA	LED driver 1 - 10V / DALI / PUSH dimming (34 - 60 W)	Check GH price Inquiries
LS-BK40P	LED driver leading/trailing edge dimming or ON/OFF (40 W)	Check GH price Inquiries
LS-BK60P	LED driver leading/trailing edge dimming or ON/OFF (60 W)	Check GH price Inquiries
