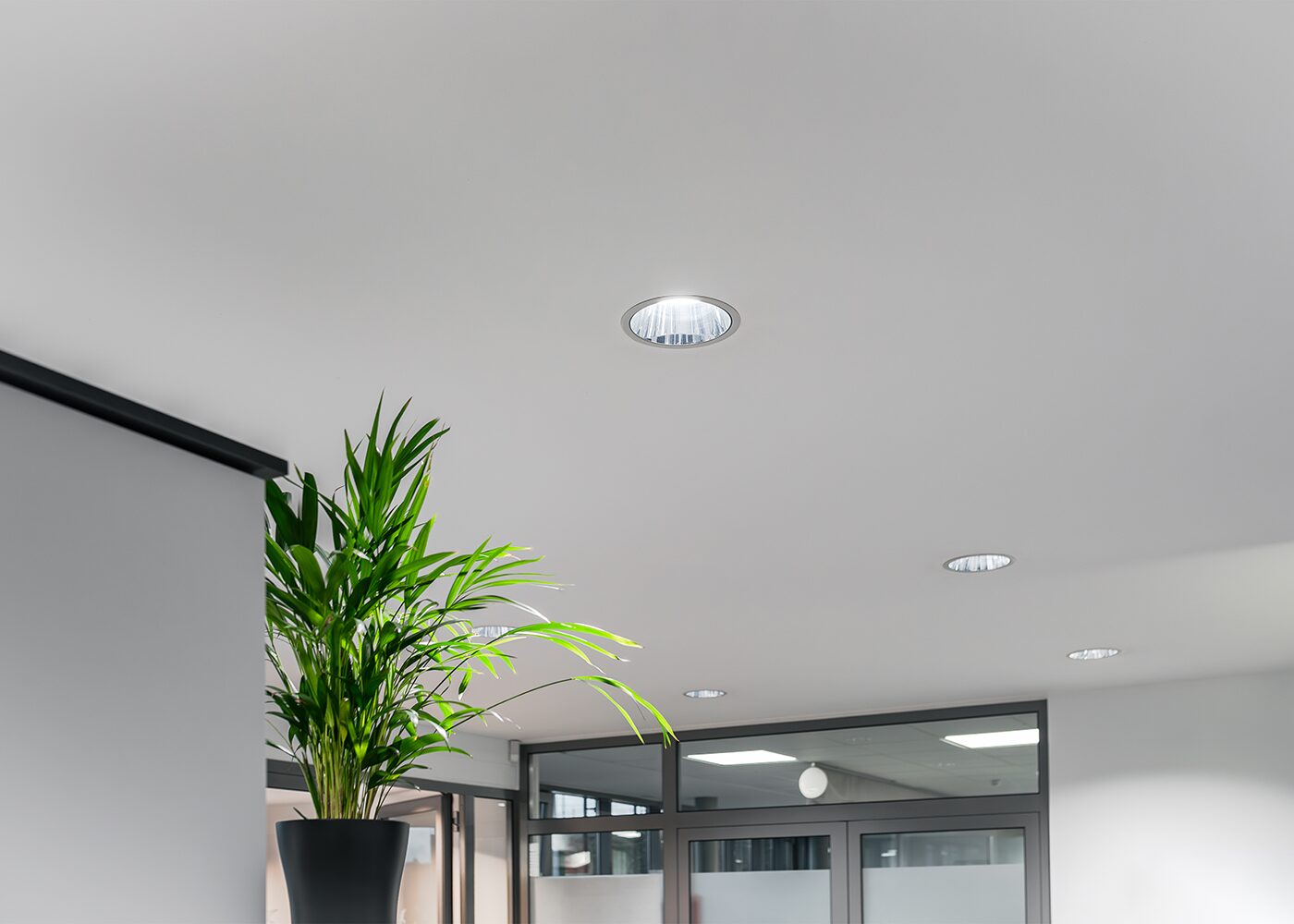

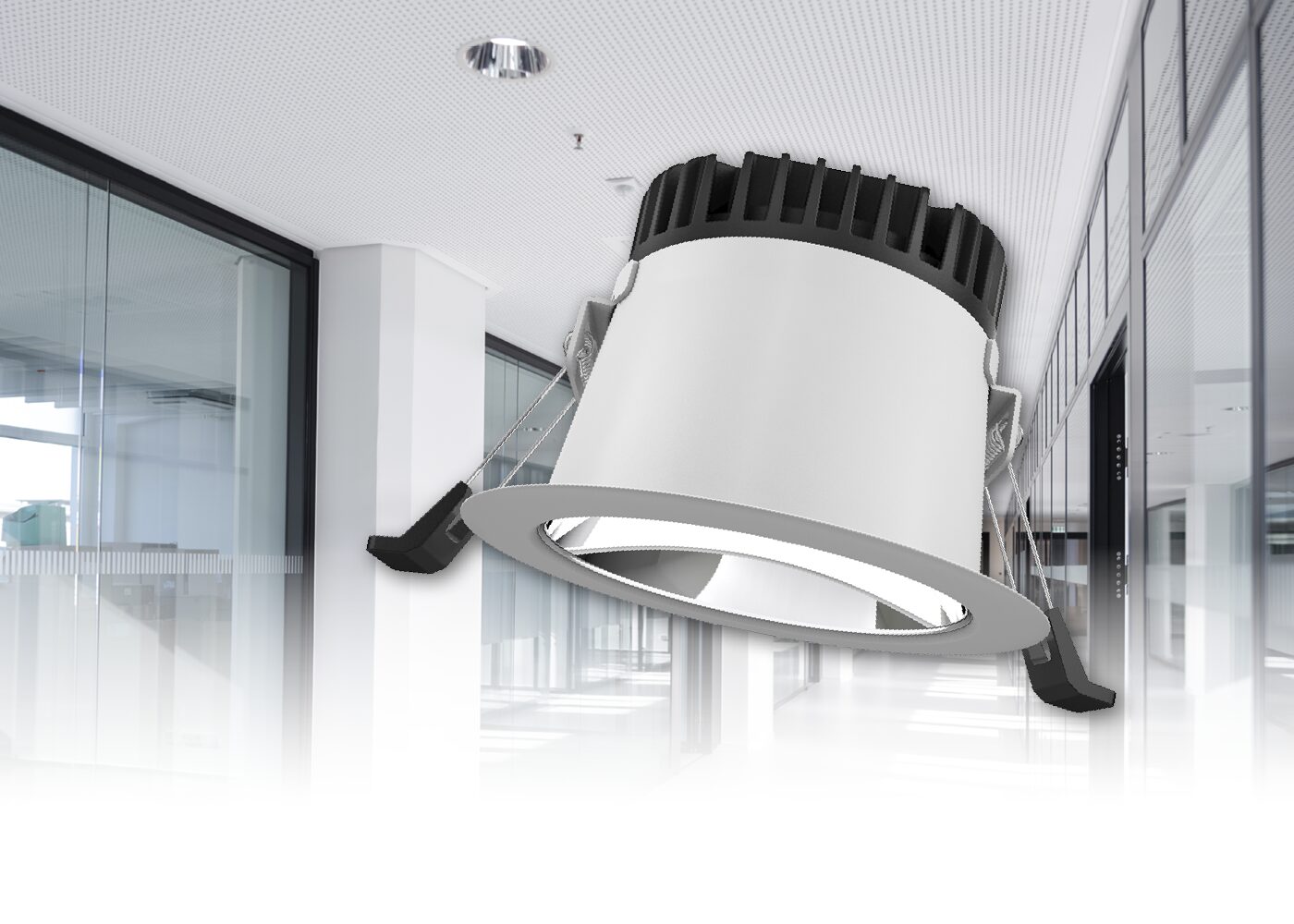

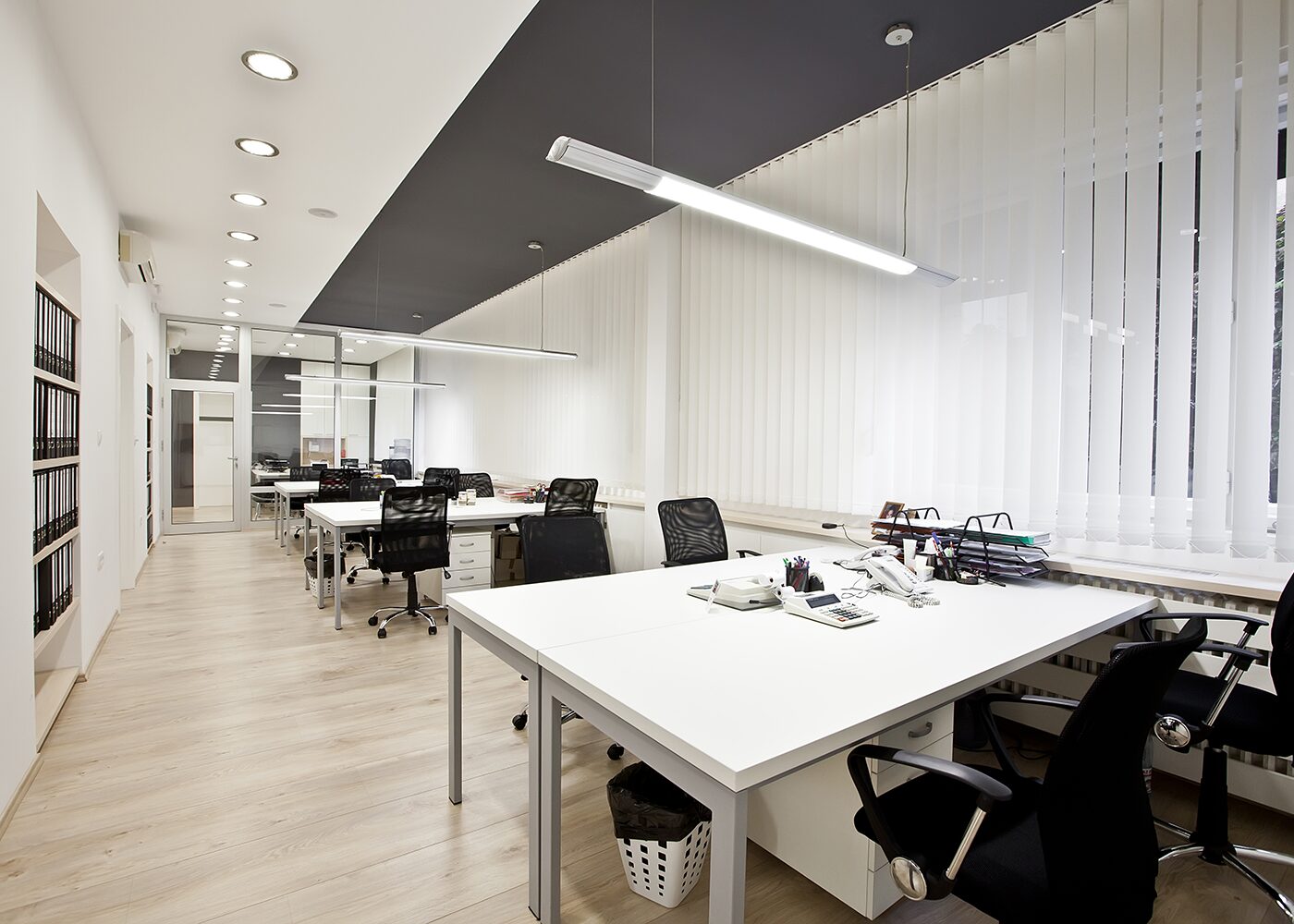

With cutout diameters from 105 to 300 mm, the LED downlight SELECT The ideal solution for diverse applications. Installed in cut-out ceilings, it perfectly illuminates and elegantly showcases spaces such as offices and foyers. The design ensures extremely glare-free lighting.
The high-gloss reflector, which gives the downlight its elegant appearance, is easy to remove and clean. Desired color temperatures (3000 K / 4000 K / 5700 K) can be selected on the light module. The required brightness (7-15 W or 20-40 W) can be easily adjusted without tools using DIP switches on the driver.
DALI or phase-cut dimming available on request.
| type | Article no. | Performance | Luminous flux | Light color | Beam angle | Dimming | UGR | Color | Ceiling cutout | Mass | Price |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
LS-DS15SW10C | 7W - 15W | 650 - 1500 lm | 3000 / 4000 / 5700 K | 85° | DIP | < 19 | white | Ø 105 mm | Ø 125 x 95 mm |
|
 |
LS-DS15SW15C | 7W - 15W | 650 - 1500 lm | 3000 / 4000 / 5700 K | 85° | DIP | < 19 | white | Ø 150 mm | Ø 172 x 120 mm |
|
 |
LS-DS40SW20C | 20W - 40W | 2000 - 4000 lm | 3000 / 4000 / 5700 K | 85° | DIP | < 19 - < 21 | white | Ø 200 mm | Ø 220 x 120 mm |
|
 |
LS-DS40SW25C | 20W - 40W | 2000 - 4000 lm | 3000 / 4000 / 5700 K | 85° | DIP | < 19 - < 21 | white | Ø 250 mm | Ø 272 x 125 mm |
|
 |
LS-DS40SW30C | 20W - 40W | 2000 - 4000 lm | 3000 / 4000 / 5700 K | 85° | DIP | < 19 - < 21 | white | Ø 300 mm | Ø 320 x 125 mm |
|
