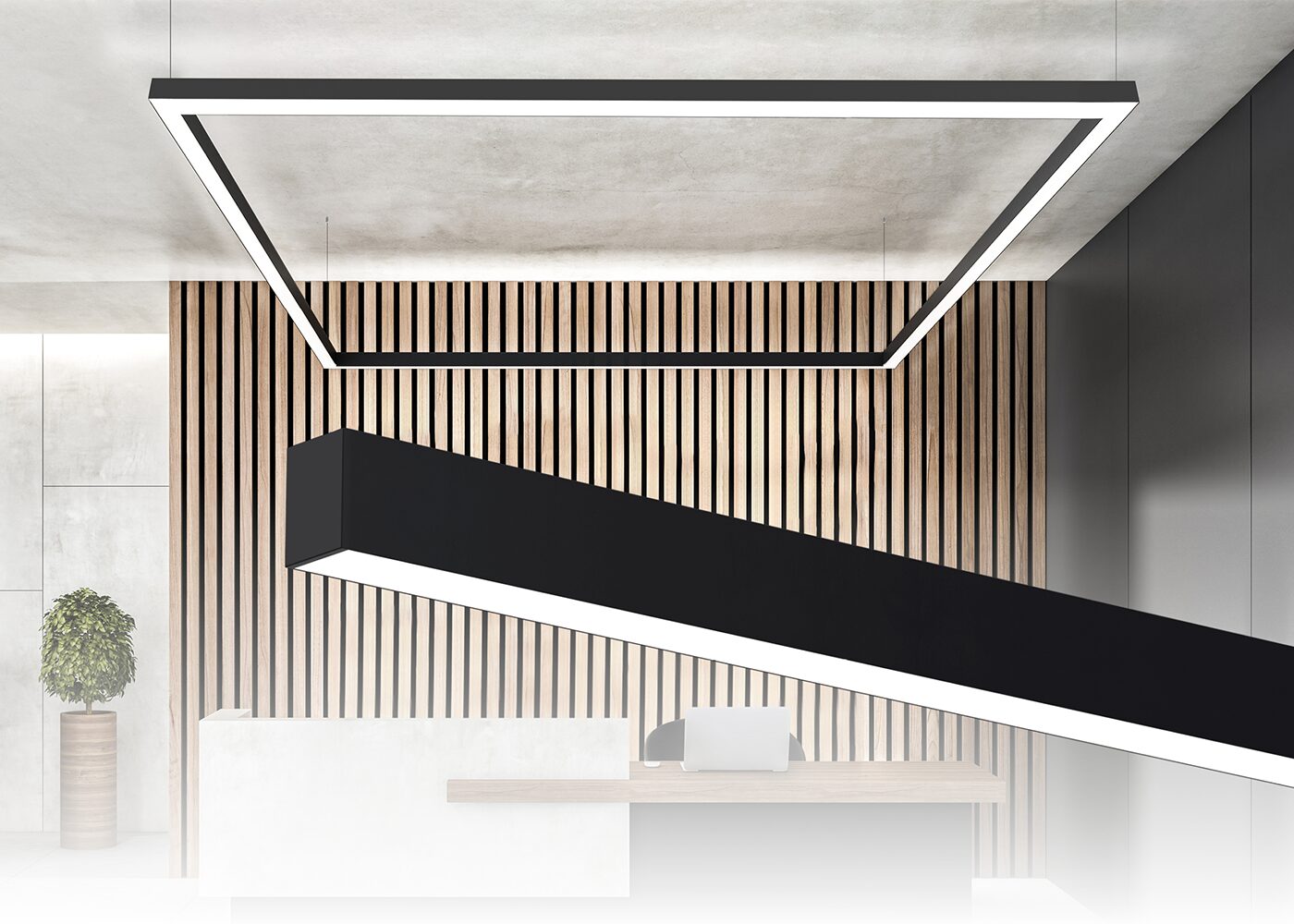

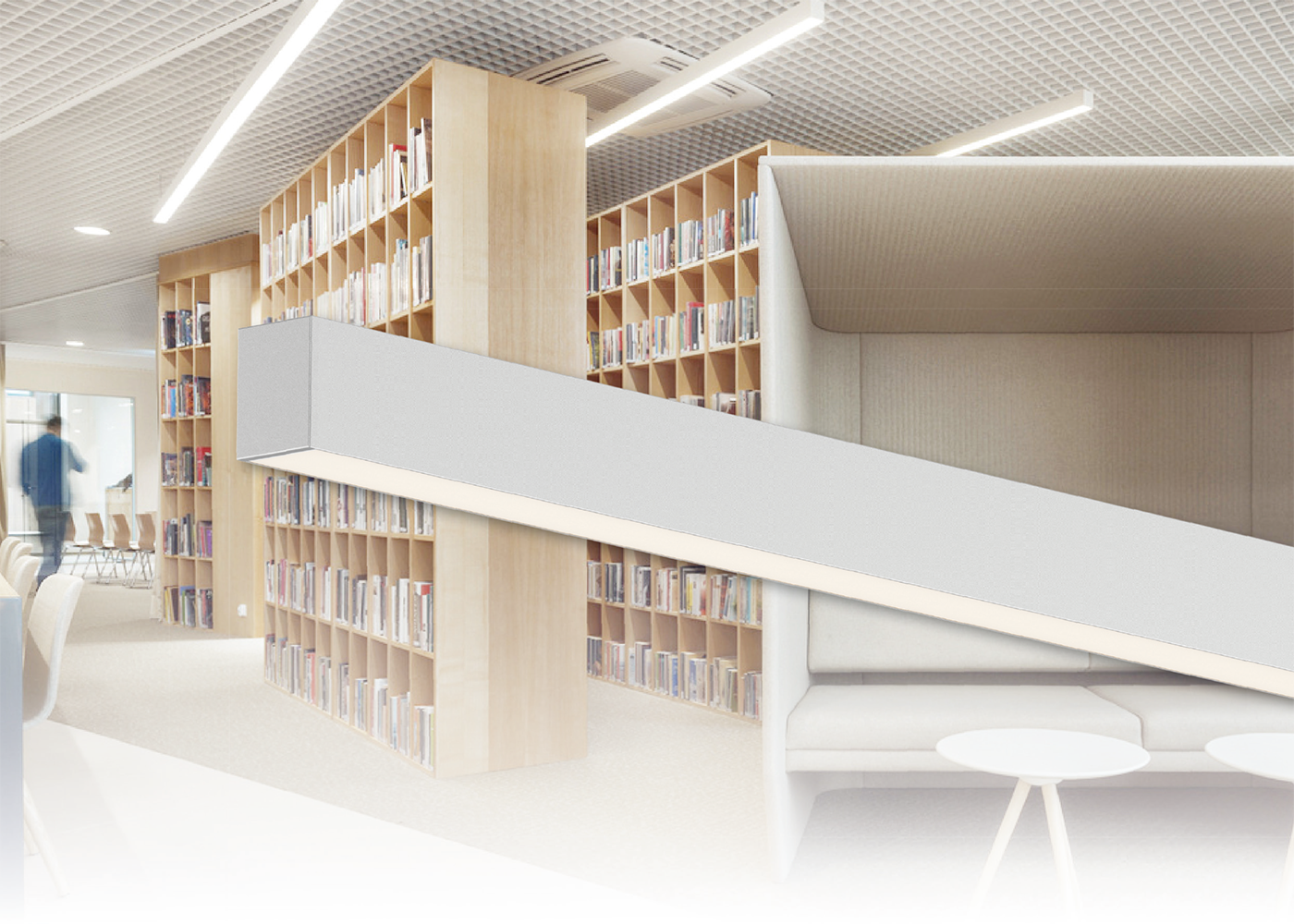

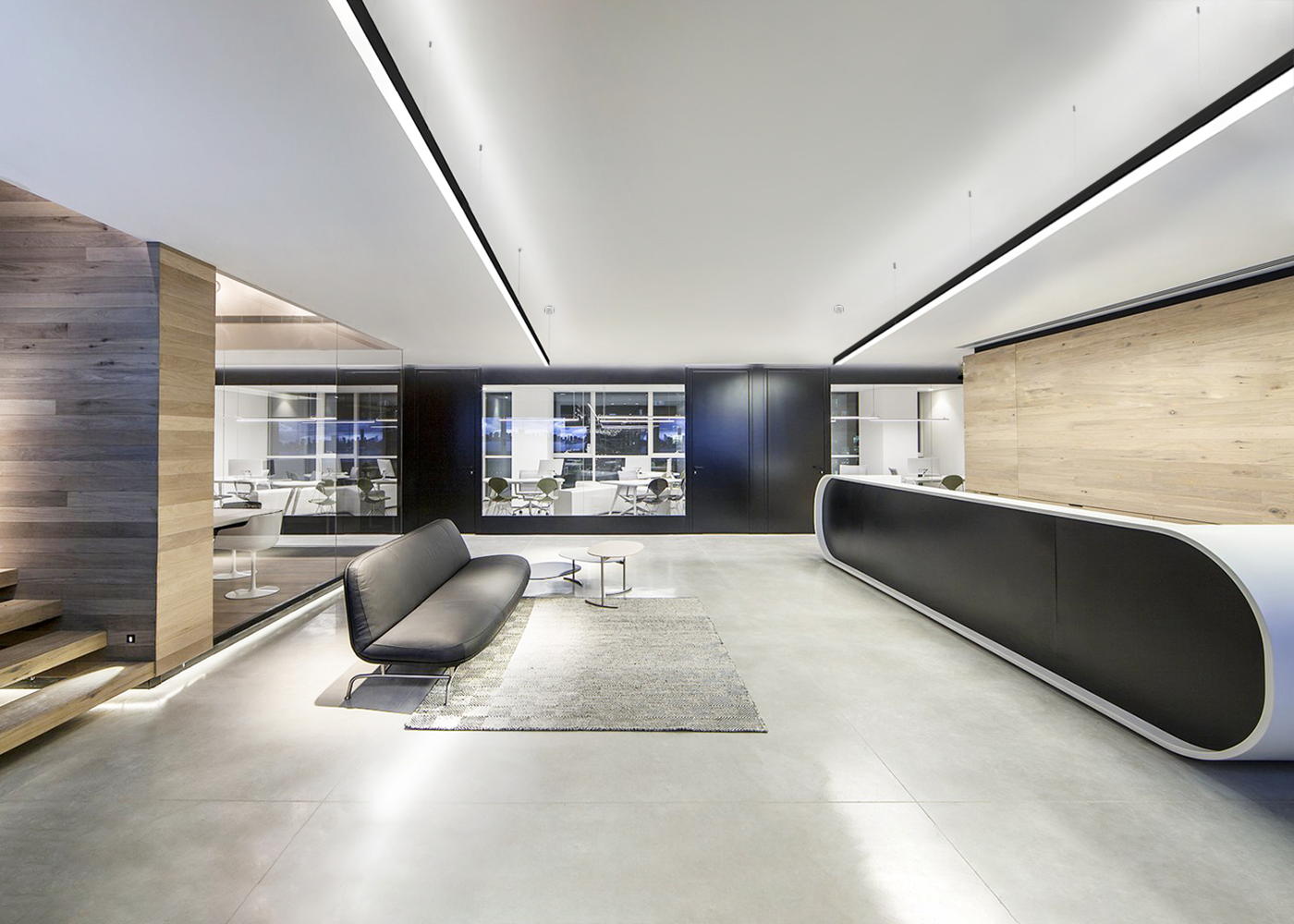

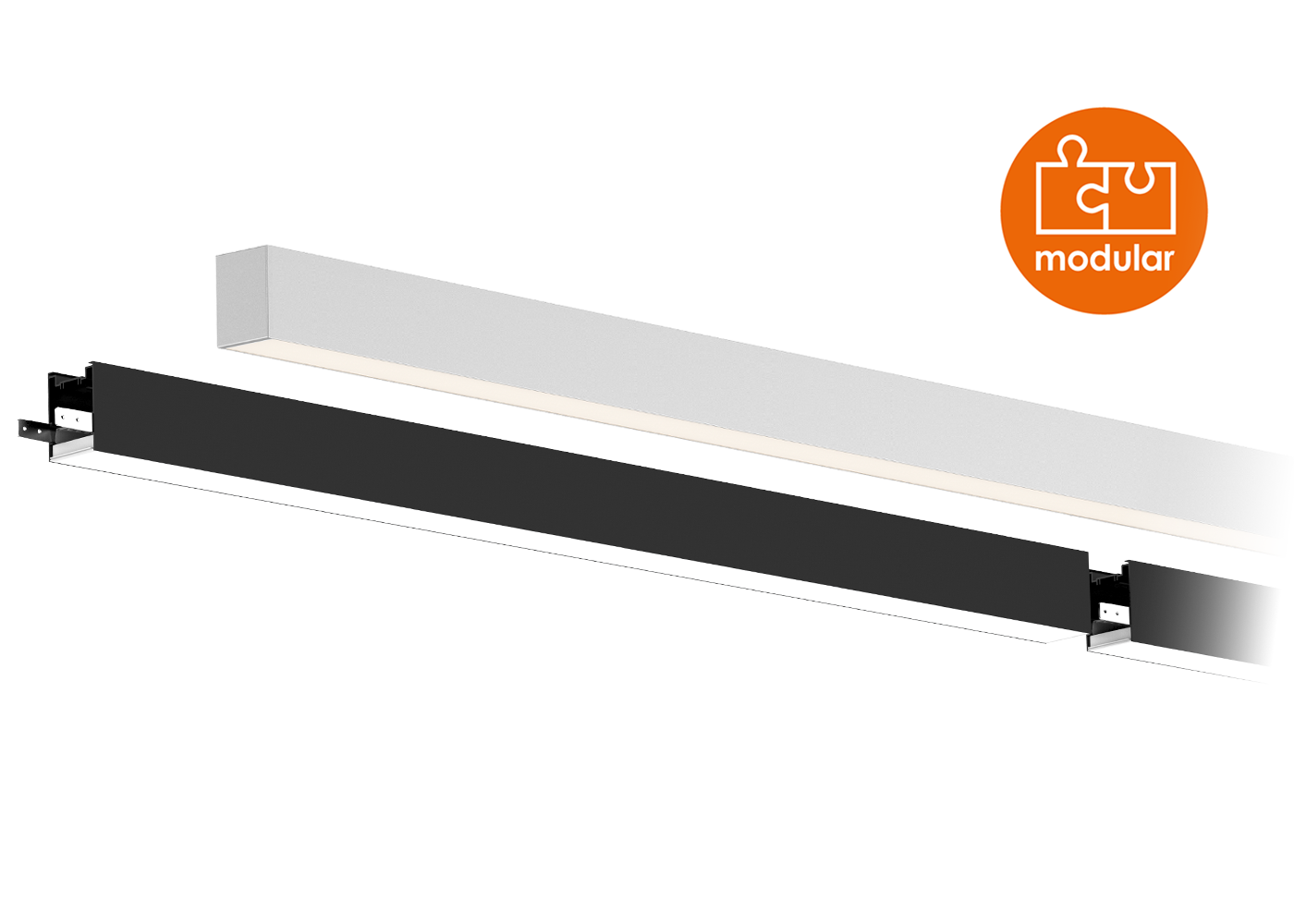

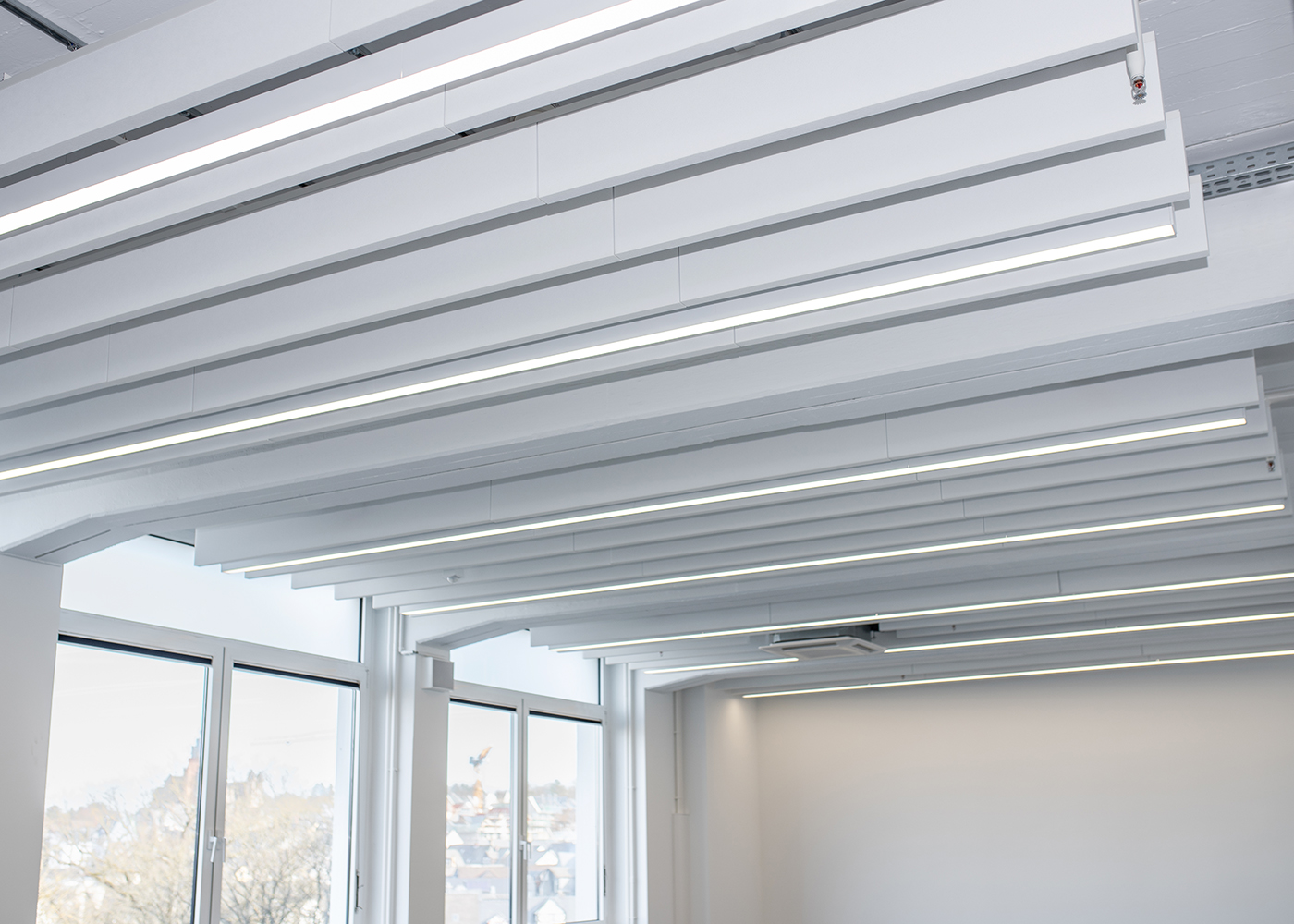

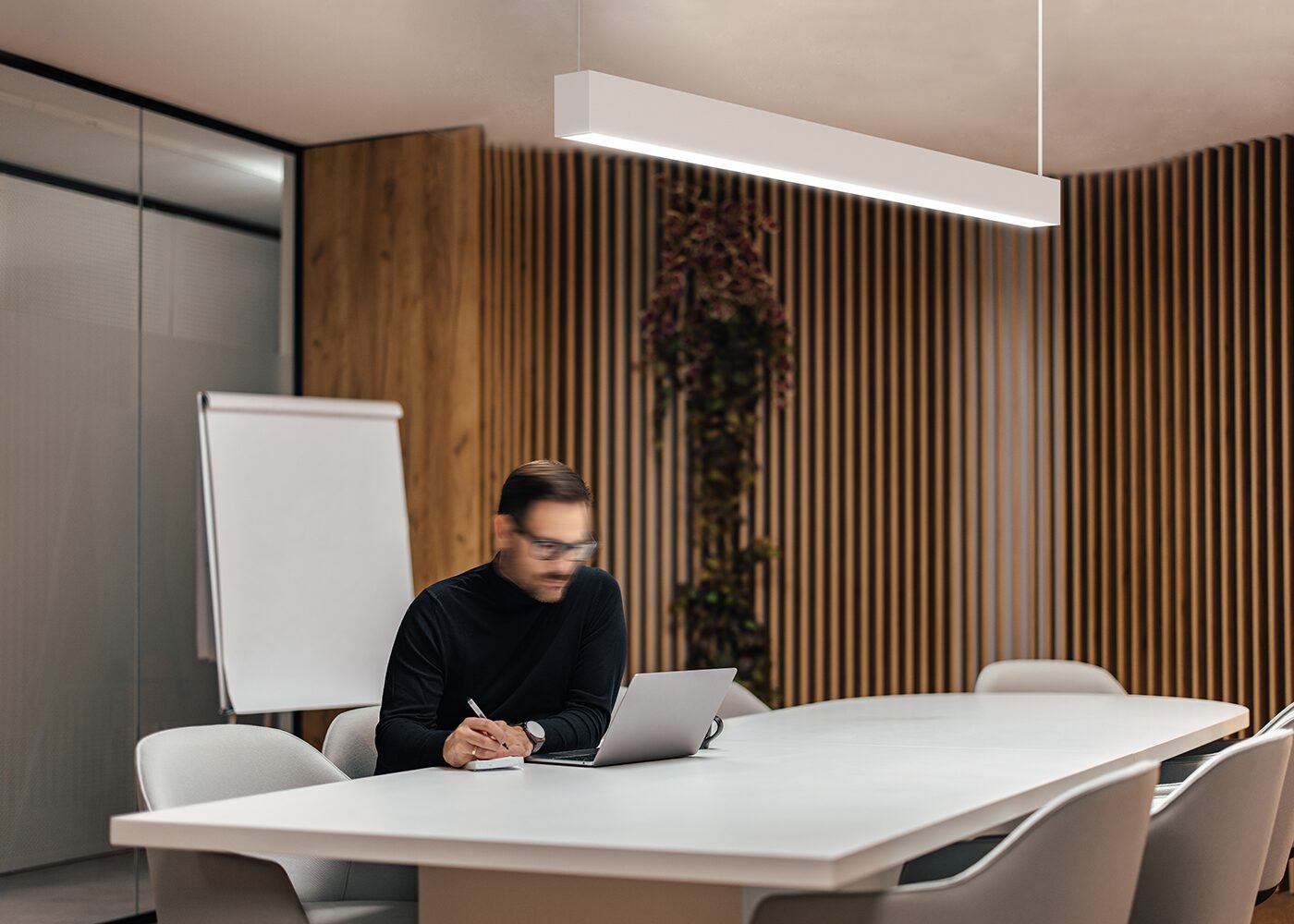

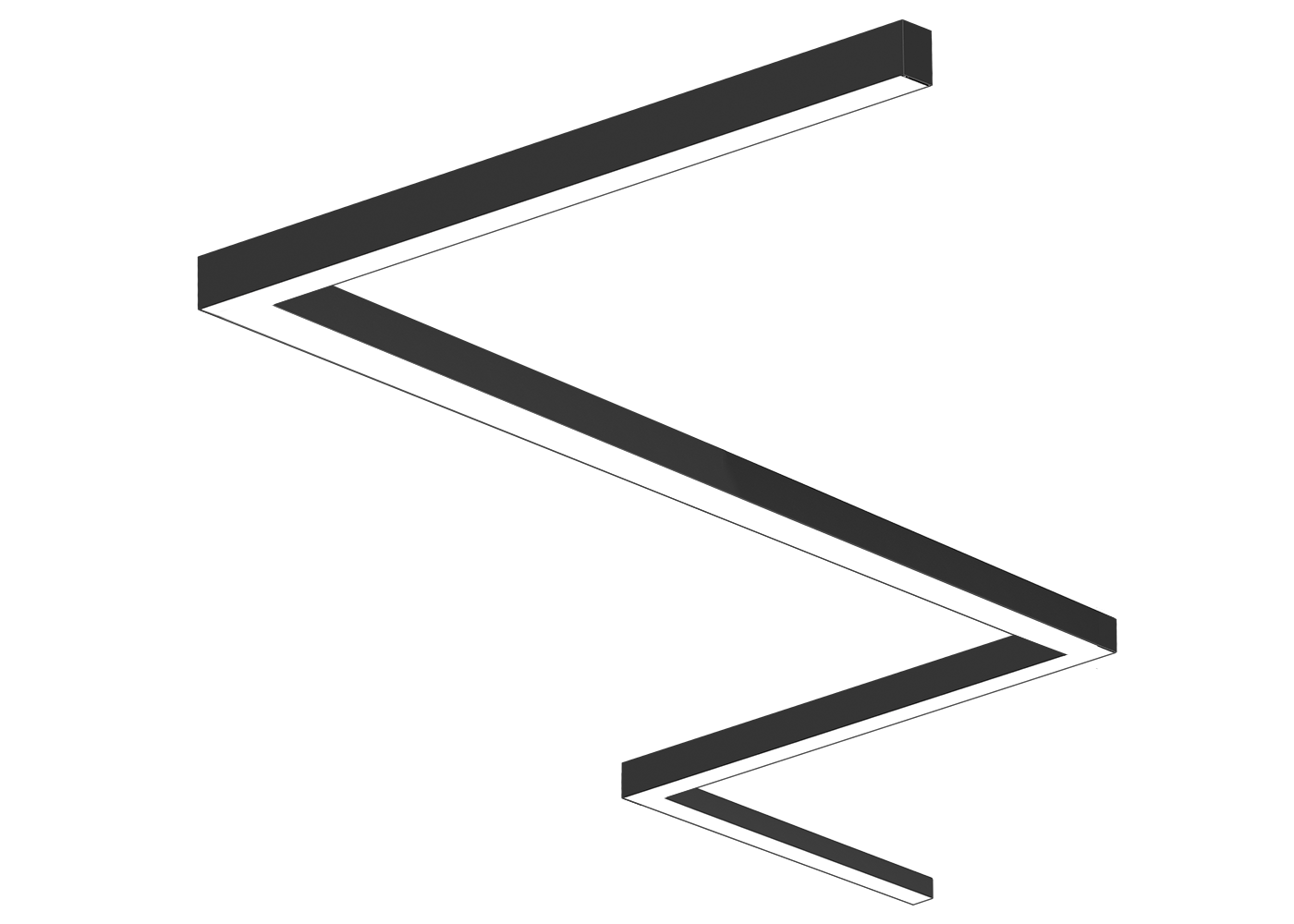

The LED linear light CENORA combines modern design with functionality. Several luminaires, connected to form a strip light or individually arranged in a form, make a first-class impression in any meeting room, office, reception area, or hallway. The powder-coated aluminum housing is available in Available in black or white.

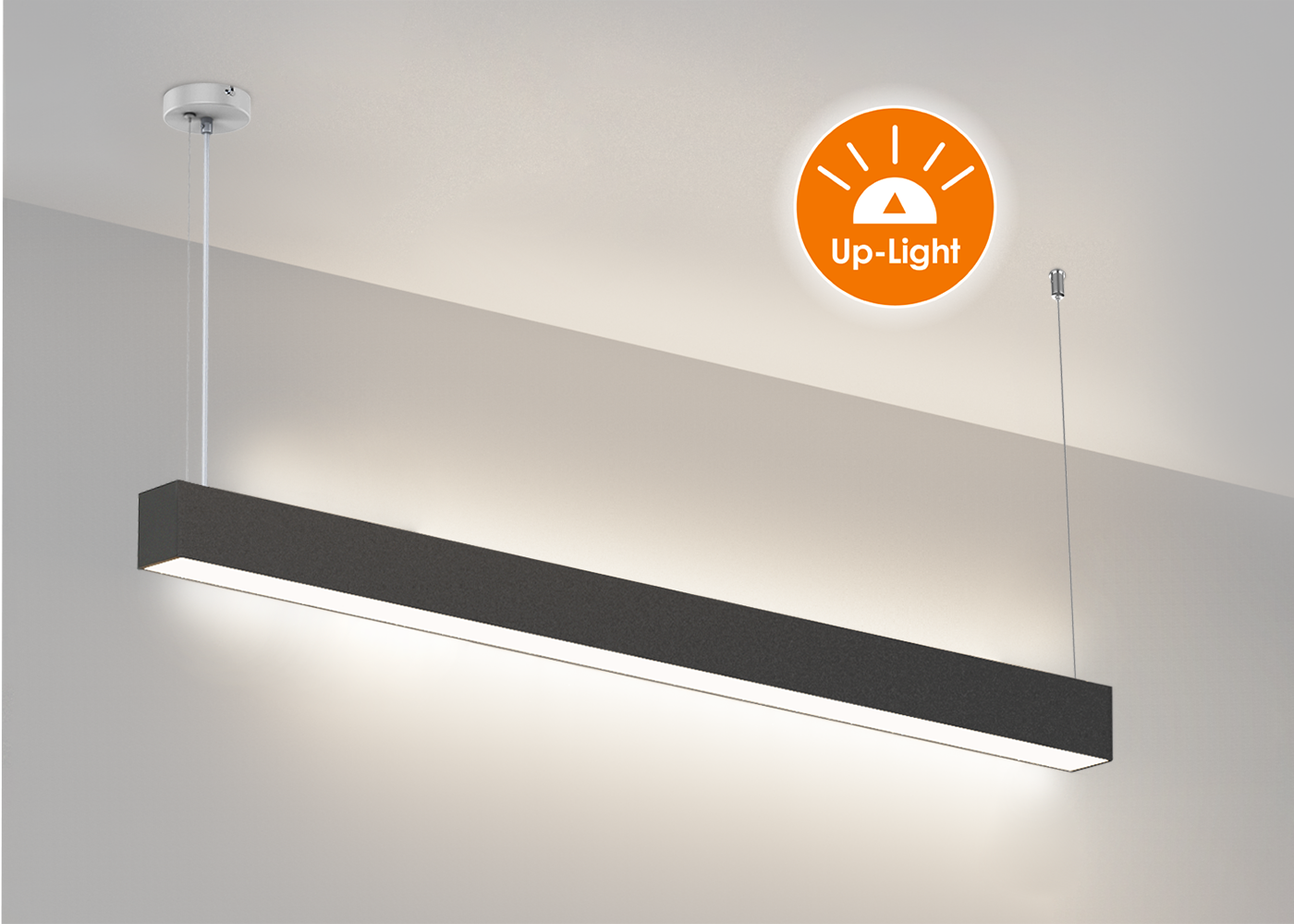

The individual modules are modular Components are easy to configure. Various diffusers and corner connectors give the system enormous flexibility. A particular highlight is the indirect uplight, which creates pleasantly soft ambient lighting.

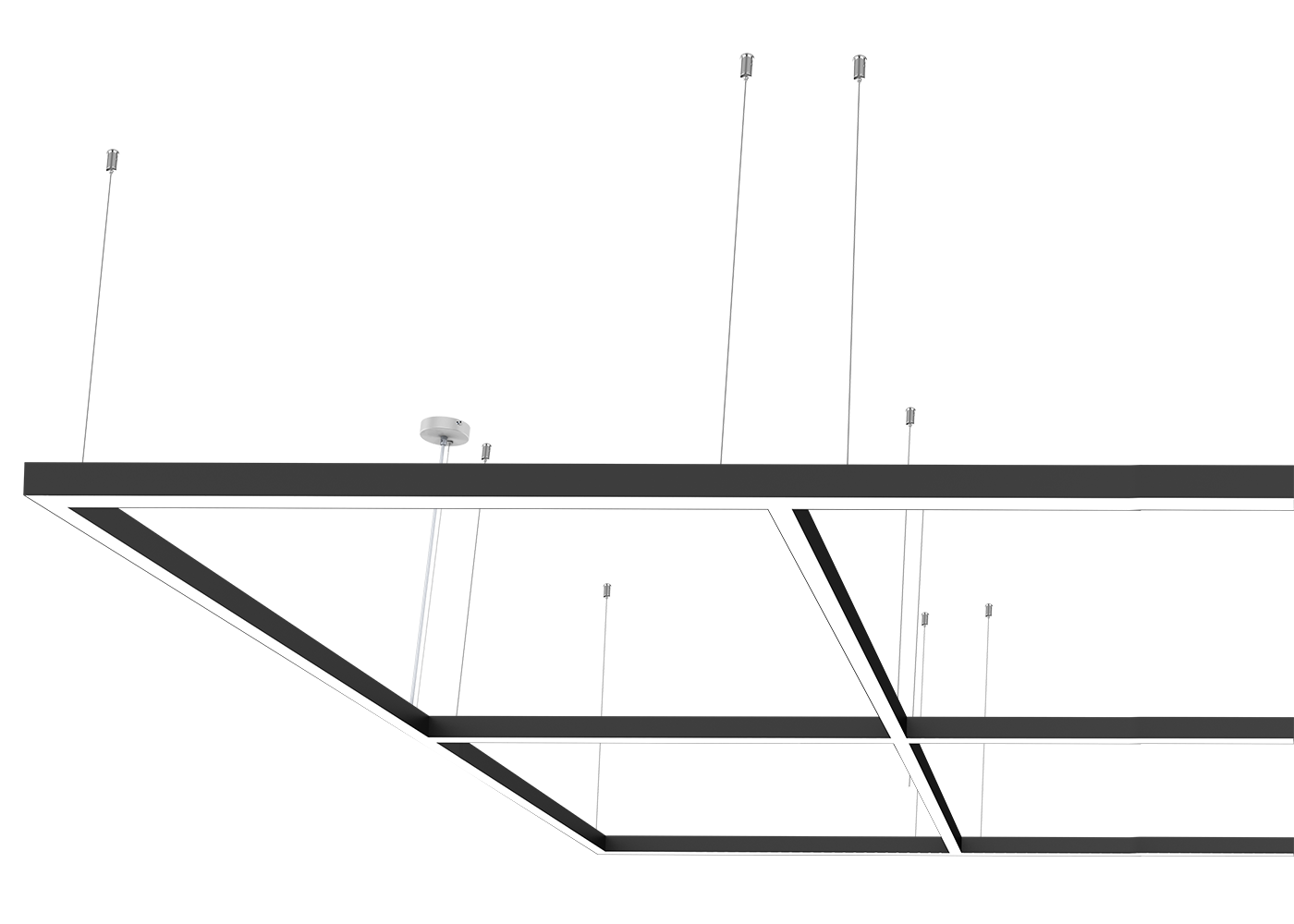

Accessories for pendant, wall, and recessed ceiling mounting are available. Direct ceiling mounting is possible without additional accessories.
*for version with prismatic cover, UGR < 19

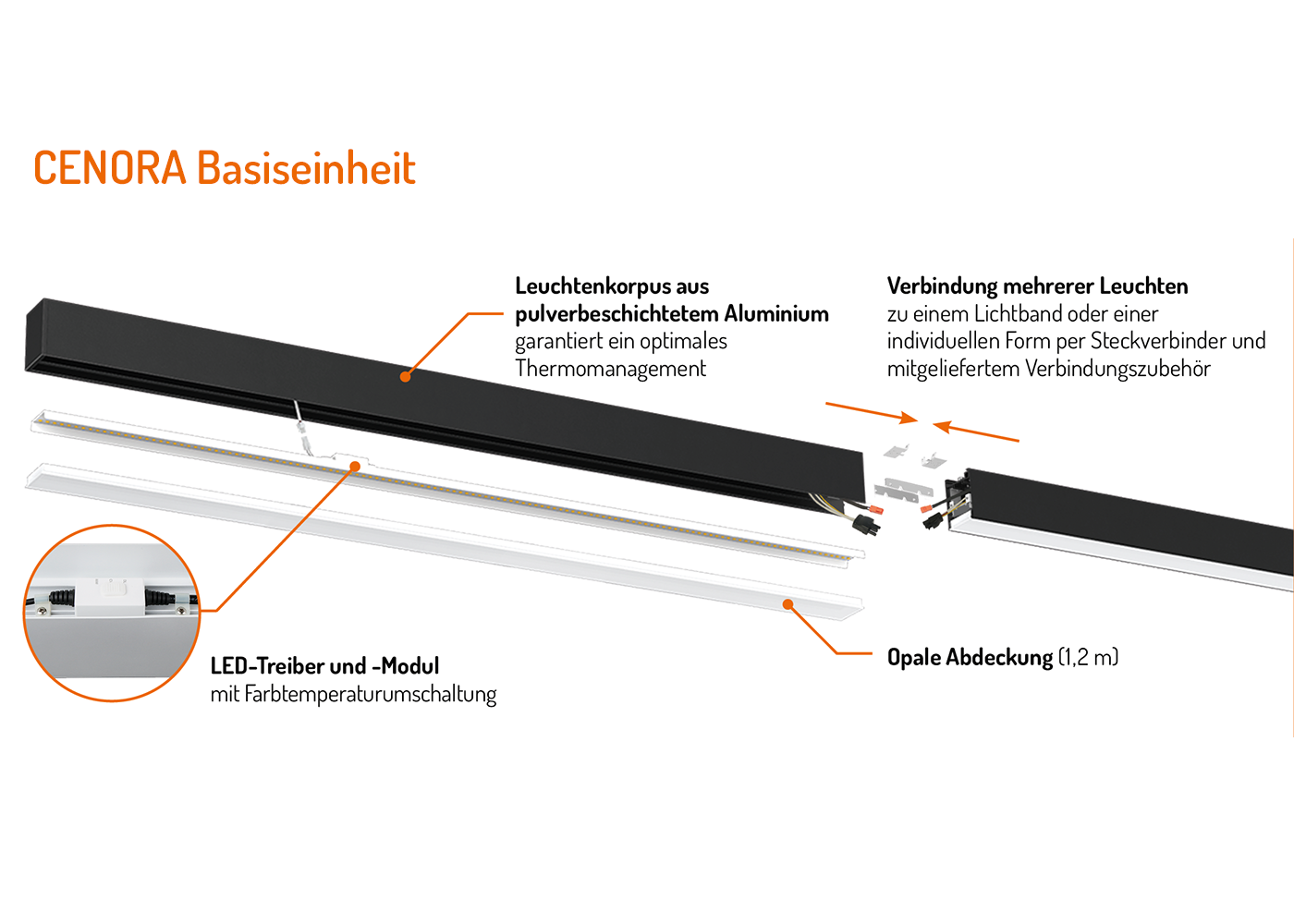

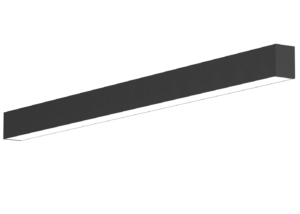

LED linear luminaire CENORA consisting of luminaire body, LED board, LED driver, connection accessories and opal cover (1.2 m)
| type | Article no. | Performance | Luminous flux | Light color | Beam angle | CRI | Dimming | UGR | Color | Mass | Weight | Price |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

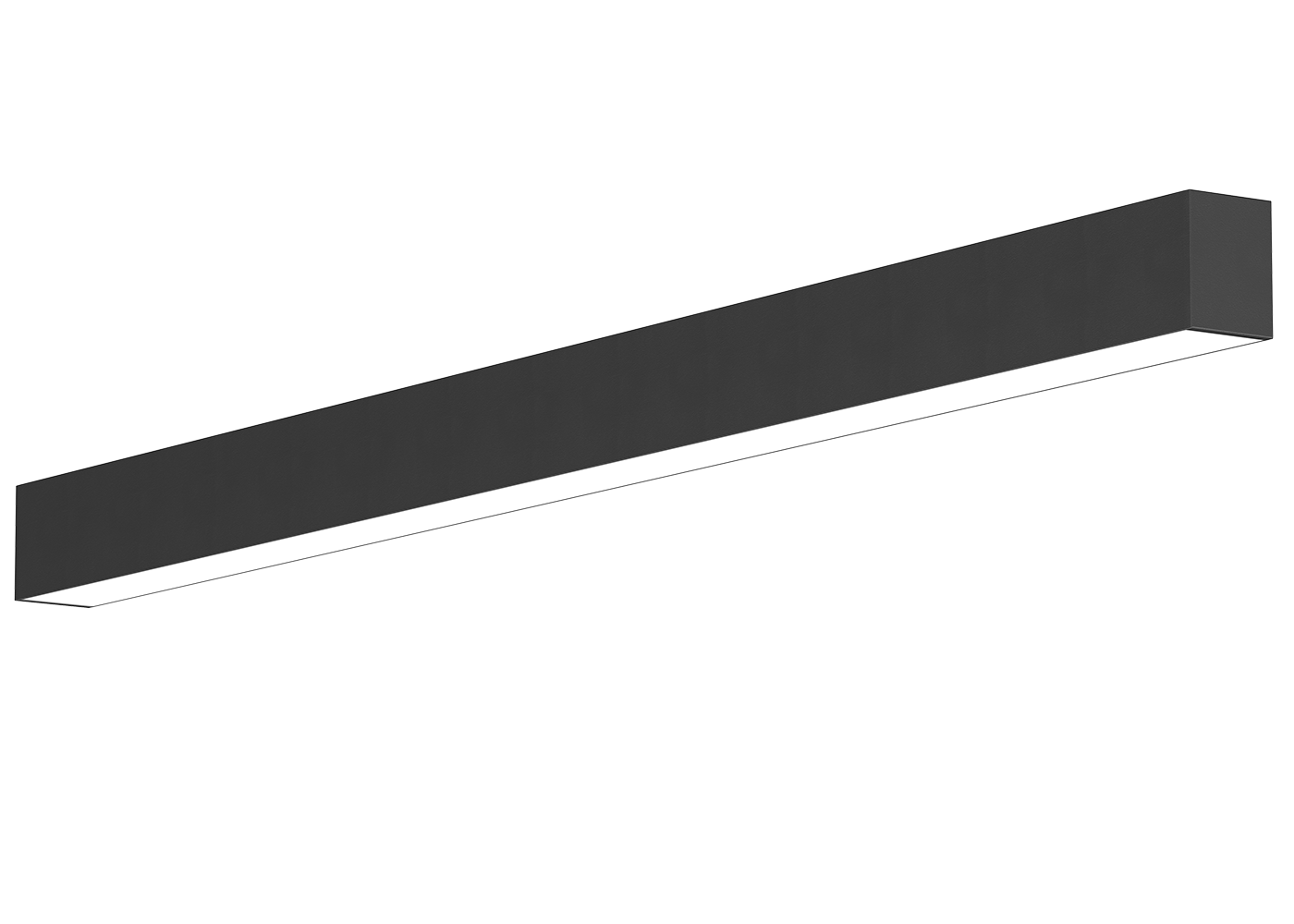

LS-CR 36 SW12-DA | 36 W | 3750 lm | 3000 / 4000 / 5000 K | 110° | > 80 | DALI | > 22 | black | 1212 x 57 x 76 mm | 2.7 kg |
|
|

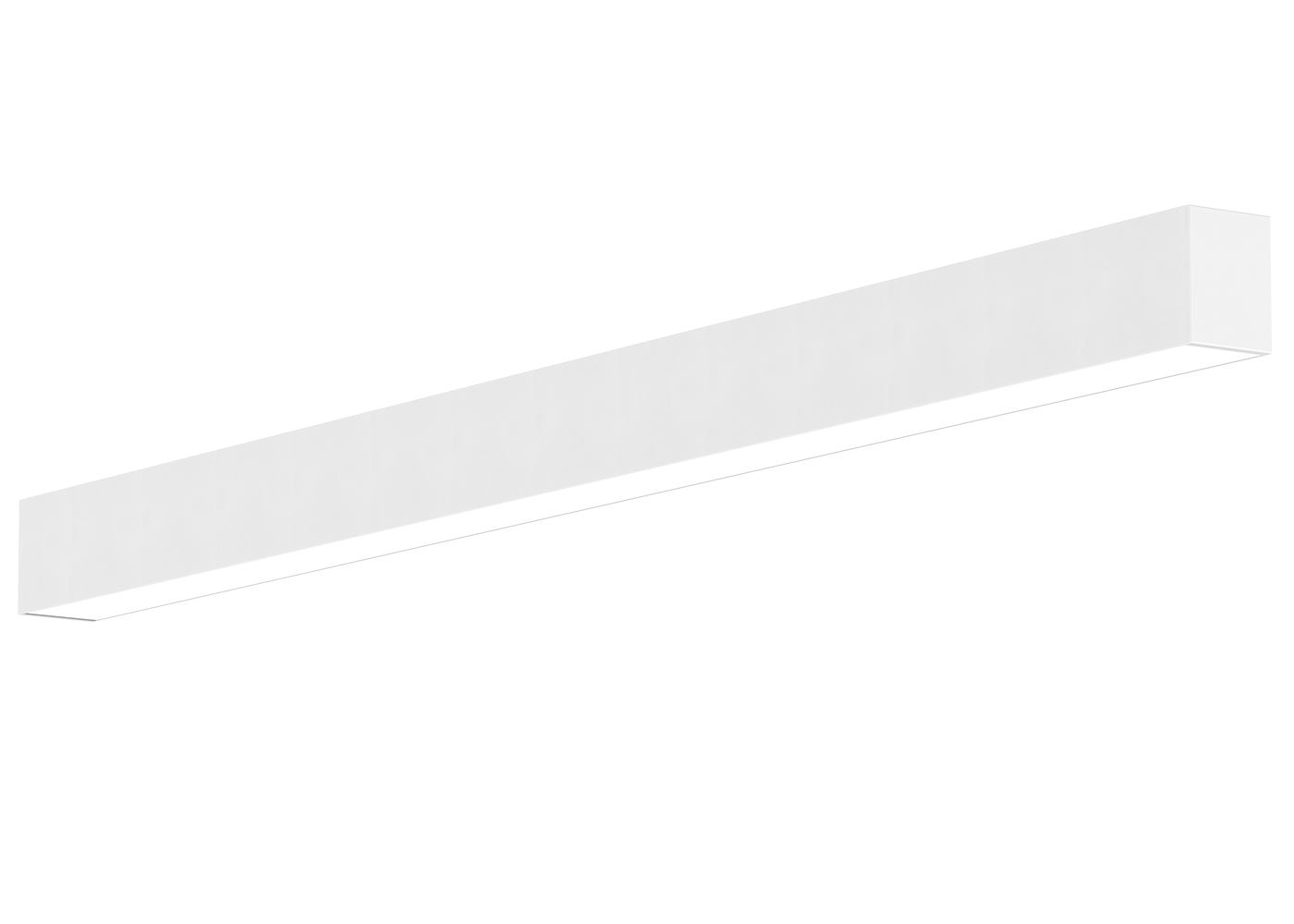

LS-CR 36 SW12W-DA | 36 W | 3750 lm | 3000 / 4000 / 5000 K | 110° | > 80 | DALI | > 22 | white | 1212 x 57 x 76 mm | 2.7 kg |
|
| type | Article no. | Designation | Price |
|---|---|---|---|
|

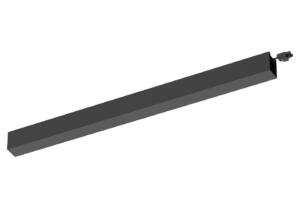

LS-CR-B12 | Dummy module with cable harness |
|
|

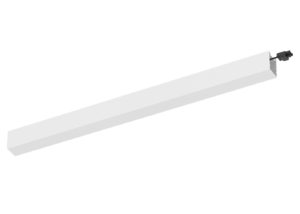

LS-CR-WB12 | Dummy module with cable harness |
|
|
LS-CR-VER-X | X-corner connector |
|
|

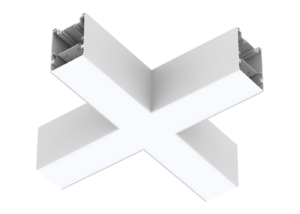

LS-CR-VER-WX | X-corner connector |
|
|

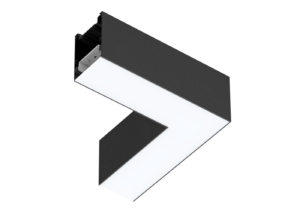

LS-CR-VER-L | L-corner connector |
|
|
LS-CR-VER-WL | L-corner connector |
|
|

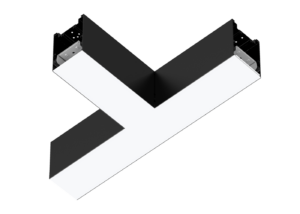

LS-CR-VER-T | T-corner connector |
|
|
LS-CR-VER-WT | T-corner connector |
|
|

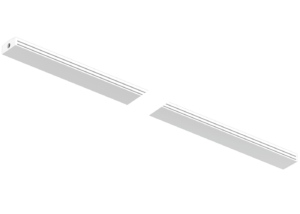

LS-CR-UP-M12 | Uplight for LS-CR36SW12(W)-DA |
|
|

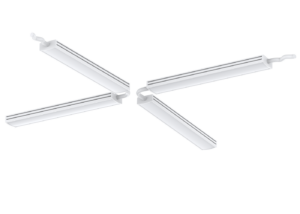

LS-CR-UP-X | Uplight for LS-CR-VER-(W)X |
|
|

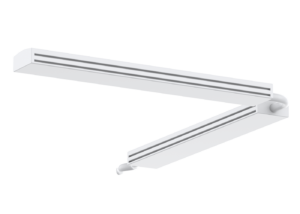

LS-CR-UP-L | Uplight for LS-CR-VER-(W)L |
|
|

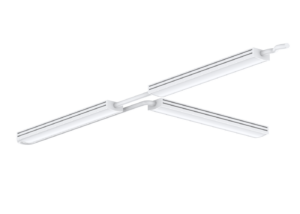

LS-CR-UP-T | Uplight for LS-CR-VER-(W)T |
|
|

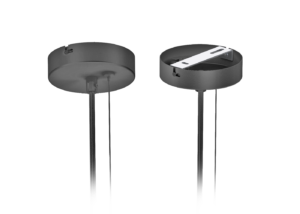

LS-CR-EINB-DA | Canopy / feed |
|
|

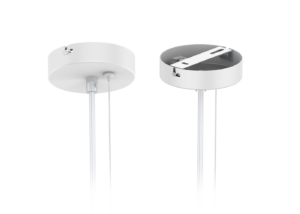

LS-CR-EINW-DA | Canopy / feed |
|
|

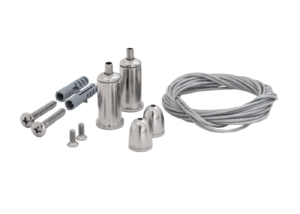

LS-CR-ON | Rope suspension set |
|
|

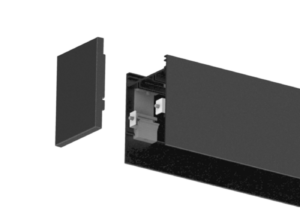

LS-CR-END | End caps |
|
|

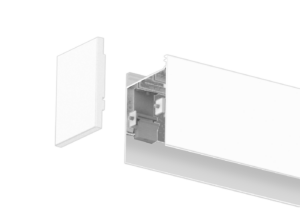

LS-CR-WEND | End caps |
|
|

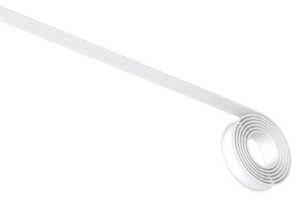

LS-CR-AB-F5 | Opal cover for LS-CR36SW12(W)-DA |
|
|
LS-CR-AB-F10 | Opal cover for LS-CR36SW12(W)-DA |
|
|

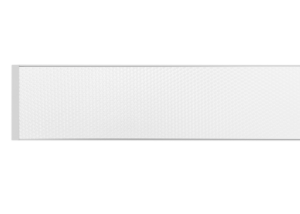

LS-CR-AB-P12 | Prismatic cover for LS-CR36SW12(W)-DA |
|
|

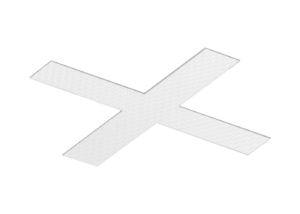

LS-CR-AB-X | Prismatic cover for LS-CR-VER-(W)X |
|
|

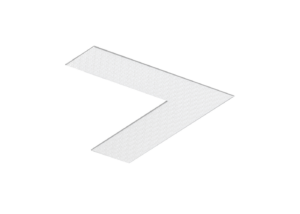

LS-CR-AB-L | Prismatic cover for LS-CR-VER-(W)L |
|
|

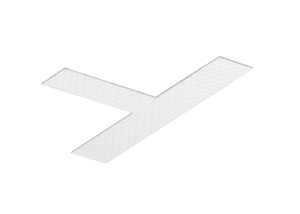

LS-CR-AB-T | Prismatic cover for LS-CR-VER-(W)T |
|
