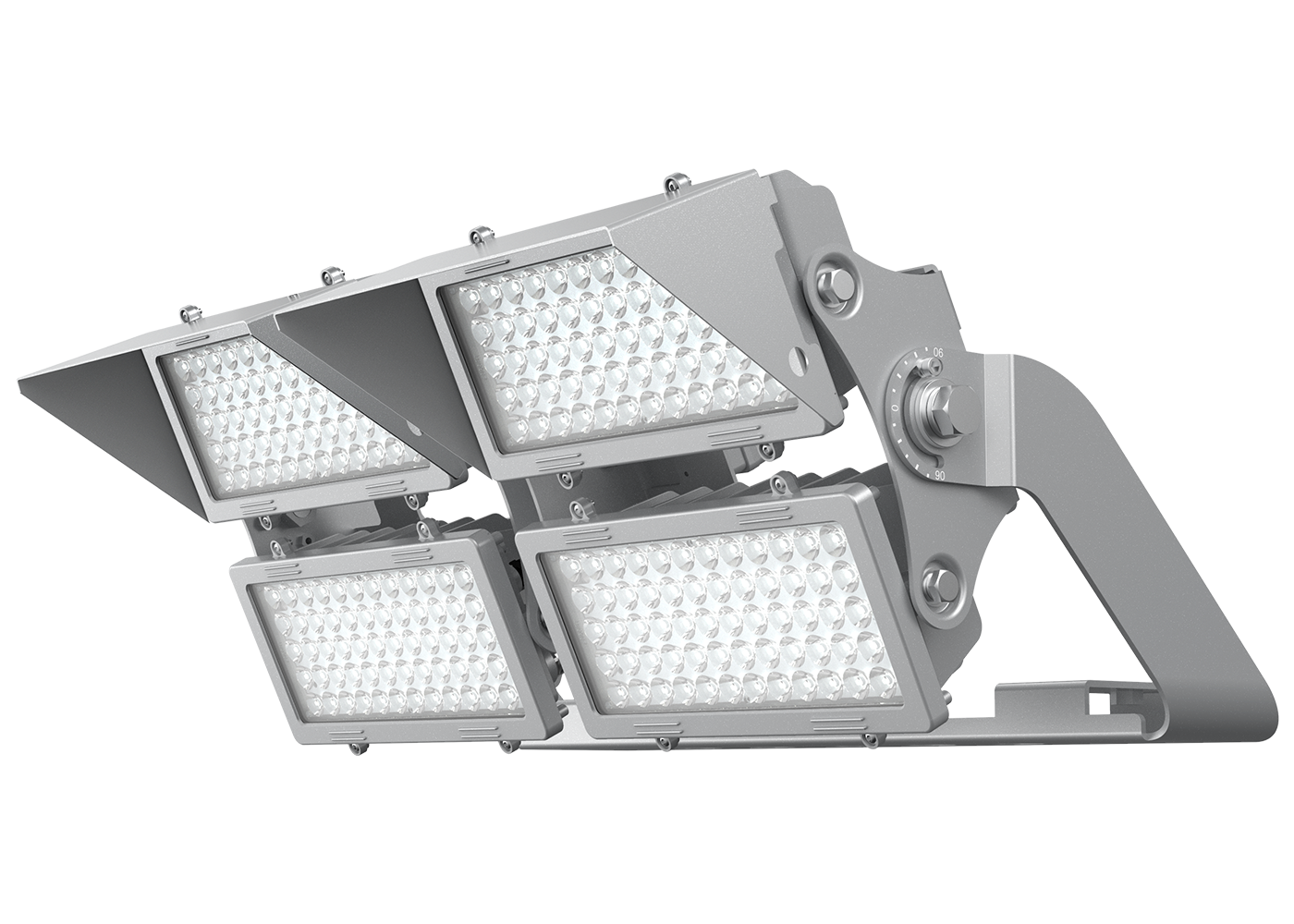

LED universal spotlight AREON plus

Highly efficient, modular and maintenance-friendly power spotlight

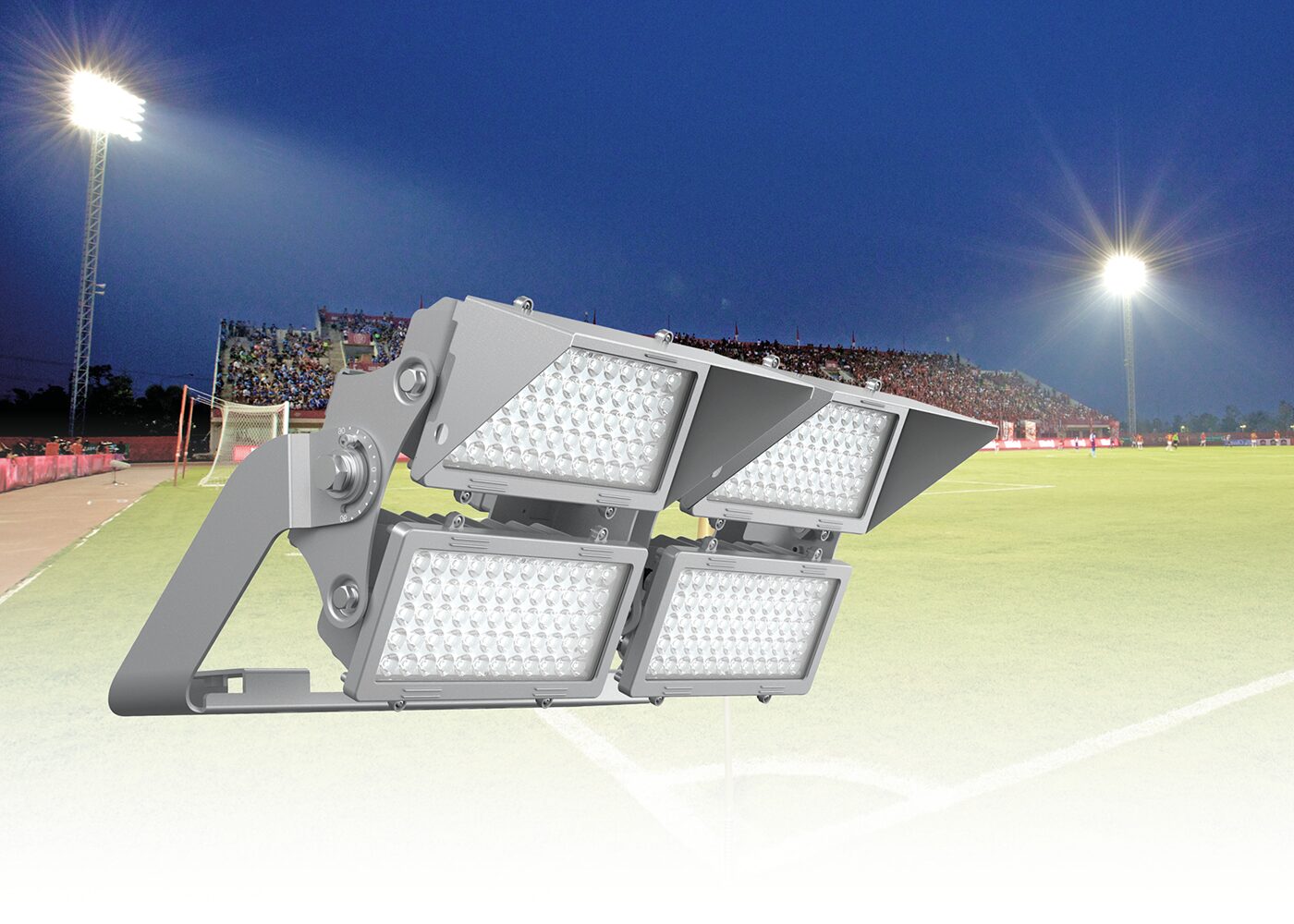

The modular design of the LED universal spotlights AREON plus enables outputs of up to 1200 W, ideal for large soccer fields or parking lots, for example. The extremely high system efficiency of up to 135 lm/W ensures enormous energy savings. A visor effectively limits glare and ensures compliance with the light emission limit. The adjustable tilt angle of each module ensures particularly uniform illumination.

The LED and driver modules are individually replaceable. The driver housing can be relocated to the center of the mast, for example, to minimize wind loads on the mast head and simplify maintenance (without the need for a riser). The powder-coated die-cast aluminum housing with strong corrosion protection was specially designed for rugged outdoor use.

Highlights Compact

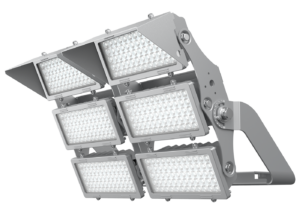

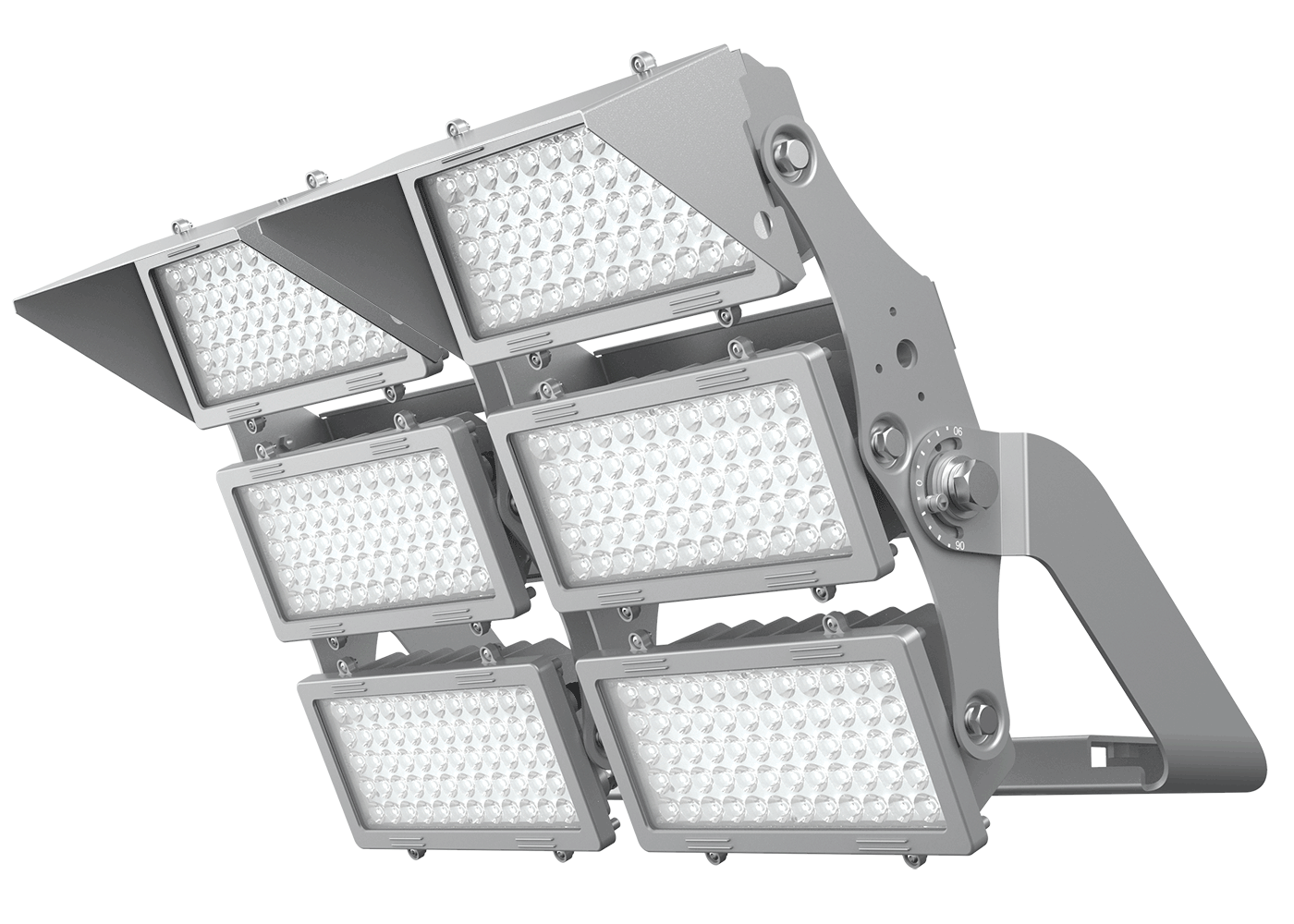

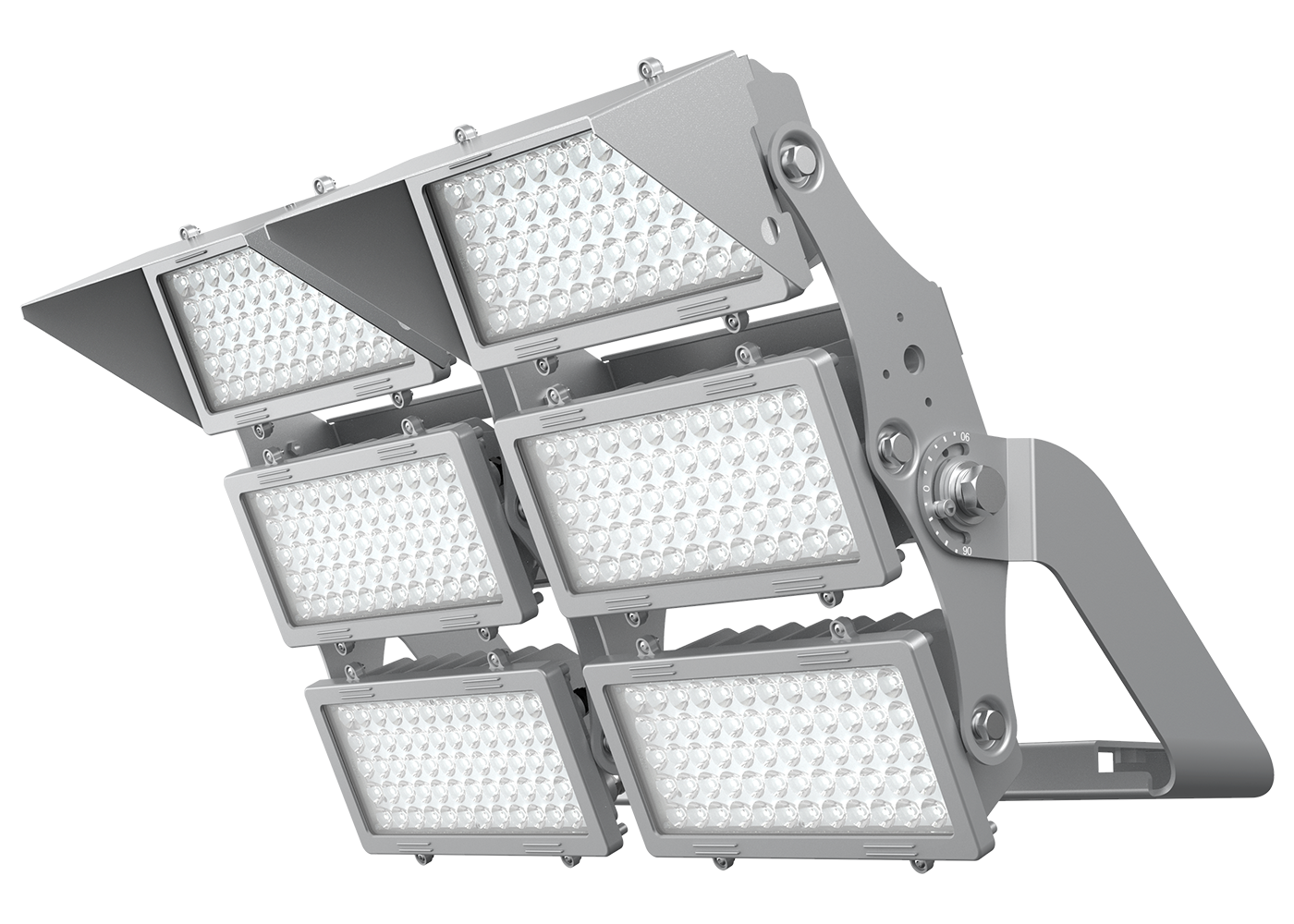

LED Universalstrahler AREON plus mit 6 Modulen — Variant with 6 modules and 1200 W power

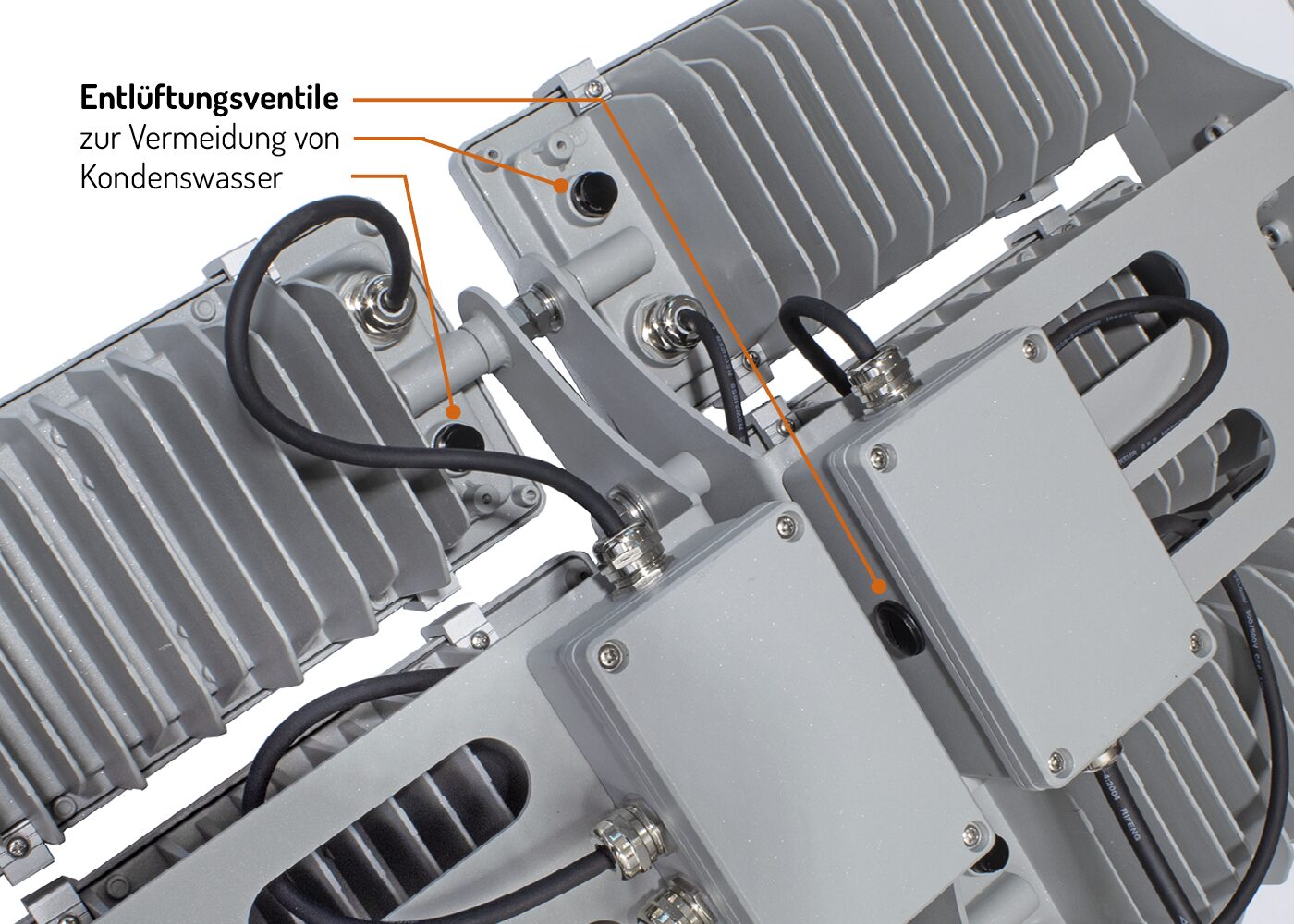

Entlüftungsventile des LED Universalstrahler AREON plus

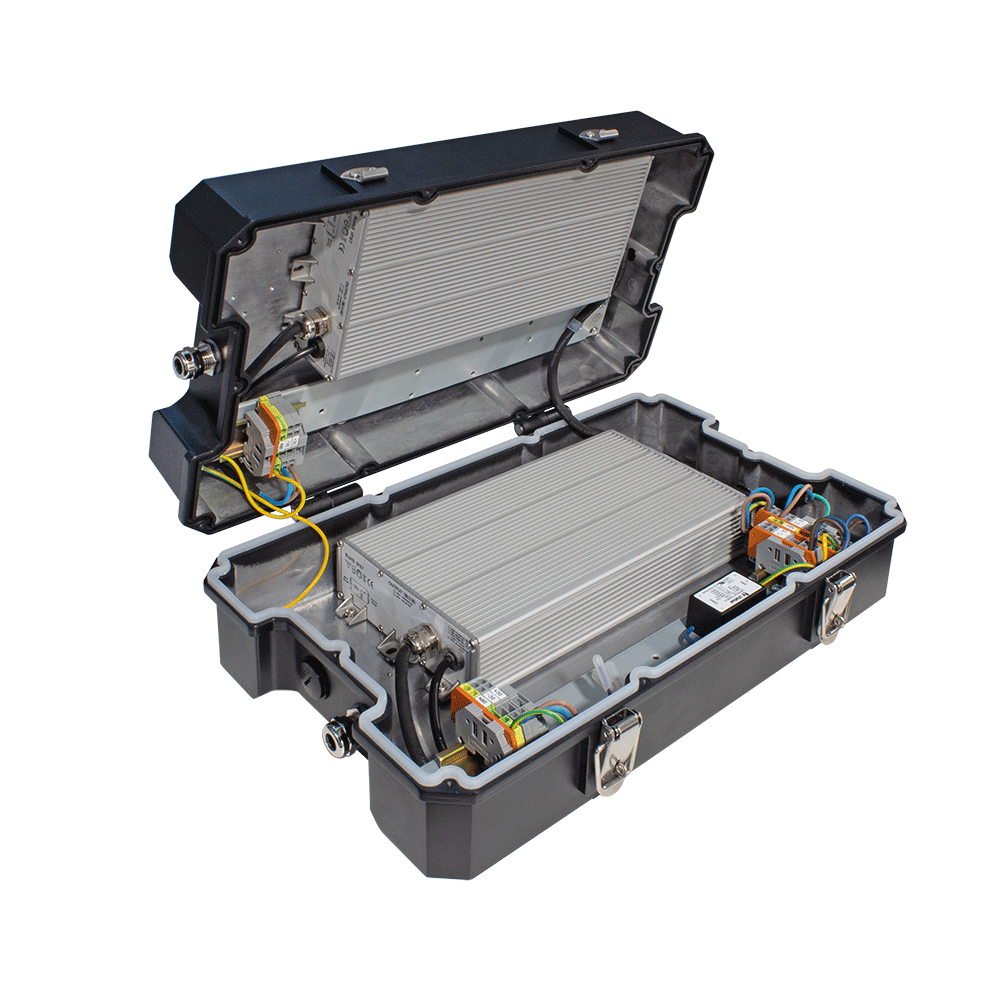

Mobiler Treiberkoffer des LED Universalstrahler AREON plus — Mobile driver case

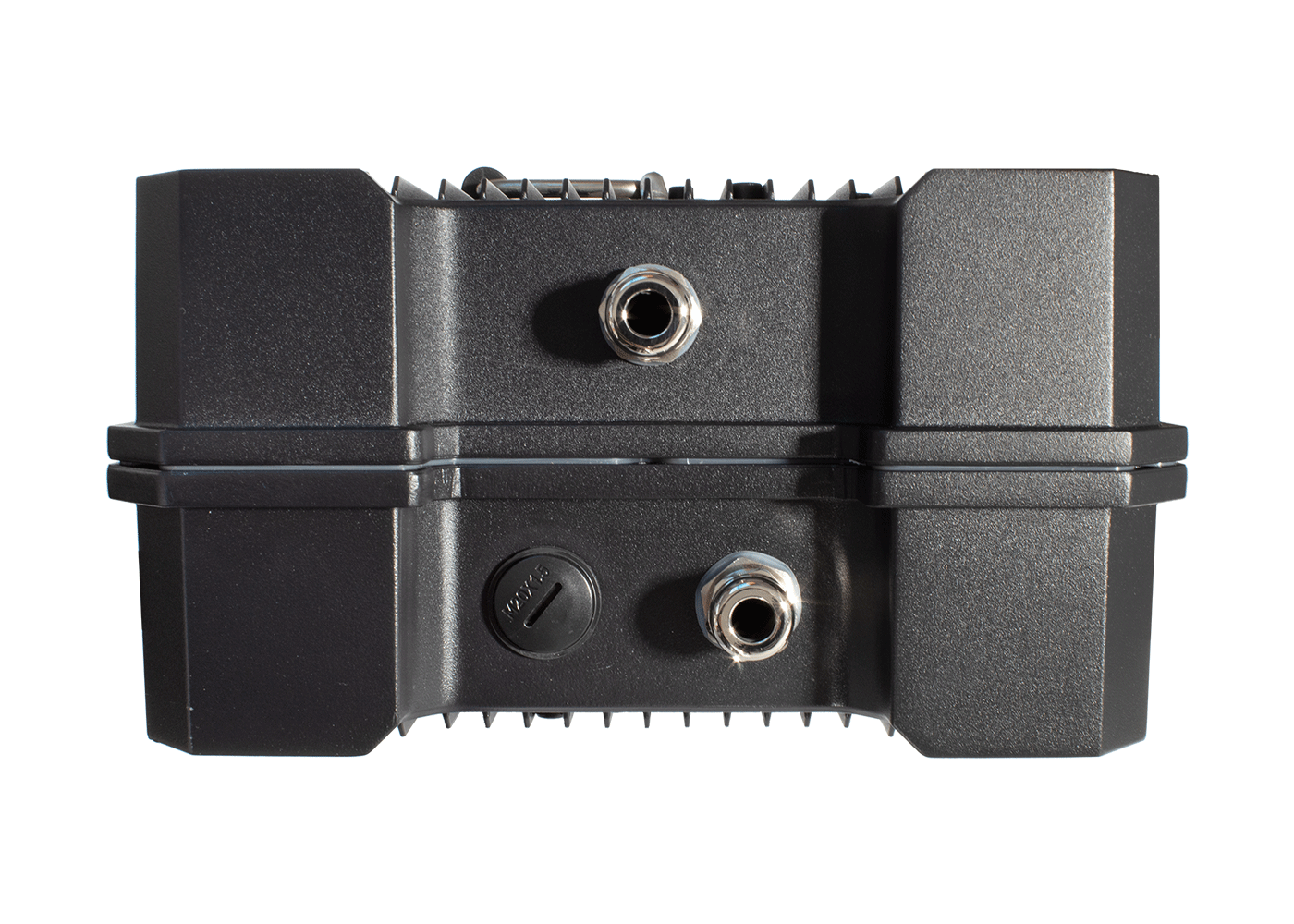

Kabel-Verschraubungen am Treiber-Koffer des LED Universalstrahler AREON plus — Cable glands on both sides of the driver case for secure sealing of all supply lines

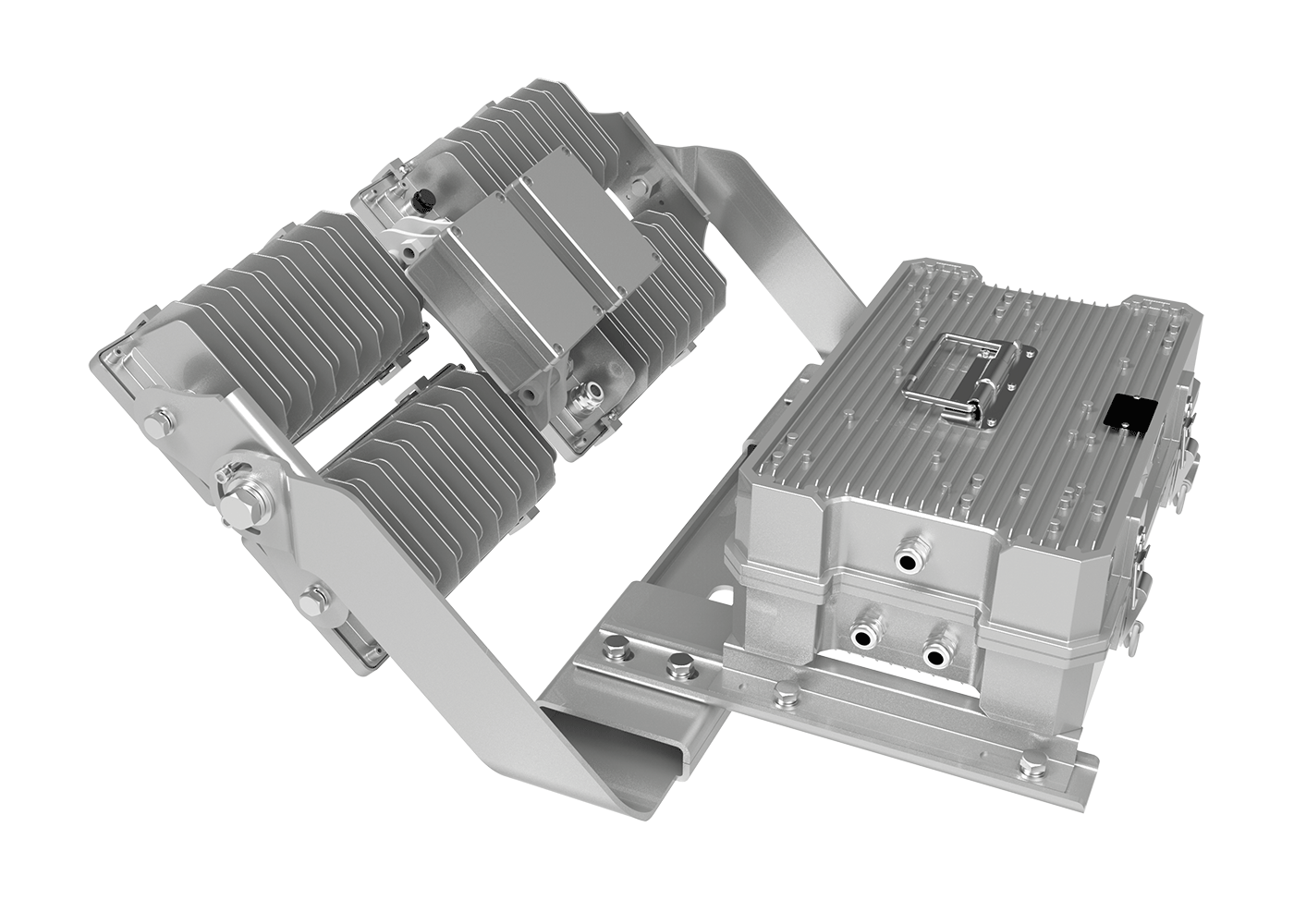

Individually replaceable LED modules and removable driver case
Robust, corrosion-protected die-cast aluminum housing
ESG cover with high impact resistance (IK 08)
Adjustable tilt angle per LED module with aluminum visor
Vent valves to prevent condensation
Optimal thermal management · Surge protectionz 10 kV

Article no.	Performance	Luminous flux	Light color	Beam angle	Modules/LEDs	Mass	Weight	Price
LS-AP800CW-30	800 W	108000	5000	30°	4 x 60 pieces	674 x 385 x 368 mm (driver case: 458 x 278 x 159 mm)	22 kg + 10 kg	Check GH price Inquiries
LS-AP800CW-45	800 W	108000	5000	45°	4 x 60 pieces	674 x 385 x 368 mm (driver case: 458 x 278 x 159 mm)	22 kg + 10 kg	Check GH price Inquiries
LS-AP800CW-60	800 W	108000	5000	60°	4 x 60 pieces	674 x 385 x 368 mm (driver case: 458 x 278 x 159 mm)	22 kg + 10 kg	Check GH price Inquiries
LS-AP800CW-110	800 W	108000	5000	15 x 100°	4 x 60 pieces	674 x 385 x 368 mm (driver case: 458 x 278 x 159 mm)	22 kg + 10 kg	Check GH price Inquiries
LS-AP1200CW-30	1200 W	160000	5000	30°	6 x 60 pieces	674 x 387 x 473 mm (driver case: 458 x 278 x 159 mm)	27 kg + 13 kg	Check GH price Inquiries
LS-AP1200CW-45	1200 W	160000	5000	45°	6 x 60 pieces	674 x 387 x 473 mm (driver case: 458 x 278 x 159 mm)	27 kg + 13 kg	Check GH price Inquiries
LS-AP1200CW-60	1200 W	160000	5000	60°	6 x 60 pieces	674 x 387 x 473 mm (driver case: 458 x 278 x 159 mm)	27 kg + 13 kg	Check GH price Inquiries
LS-AP1200CW-110	1200 W	160000	5000	15 x 100°	6 x 60 pieces	674 x 387 x 473 mm (driver case: 458 x 278 x 159 mm)	27 kg + 13 kg	Check GH price Inquiries
