LED Wand- und Deckenleuchte MONOVA

LED wall and ceiling light MONOVA

The robust all-rounder in a simple, elegant design

The LED wall and ceiling light MONOVA cuts a fine figure in any room lighting. High-quality LED chips (SMD 2835) ensure a very high light output of up to 135 lm/W.

The desired color temperature can be selected using a slider. The well-sealed, UV-resistant polycarbonate cover protects against water jets, making this all-rounder suitable for outdoor use. The sturdy mounting bracket allows for quick and easy wall or ceiling installation.

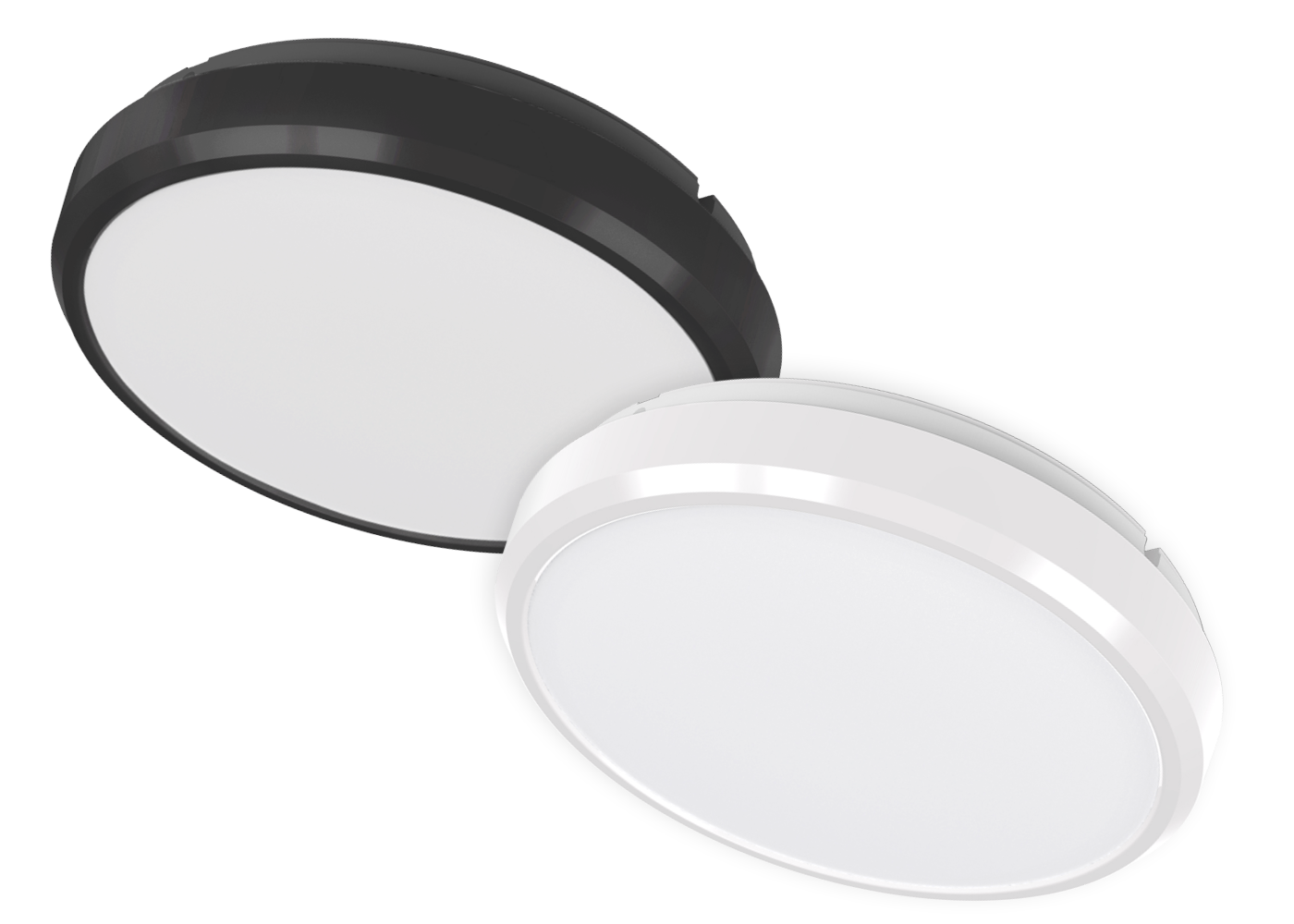

Depending on requirements and In addition to the standard version, versions with orientation light and emergency light functions, or a combination of both, are available, providing significant added value. The two color variants—black and white—round off the diverse range of possible applications.

Please note that safety and emergency lighting must be assessed by a qualified person before commissioning!

*Battery pack warranty: 3 years

Highlights Compact

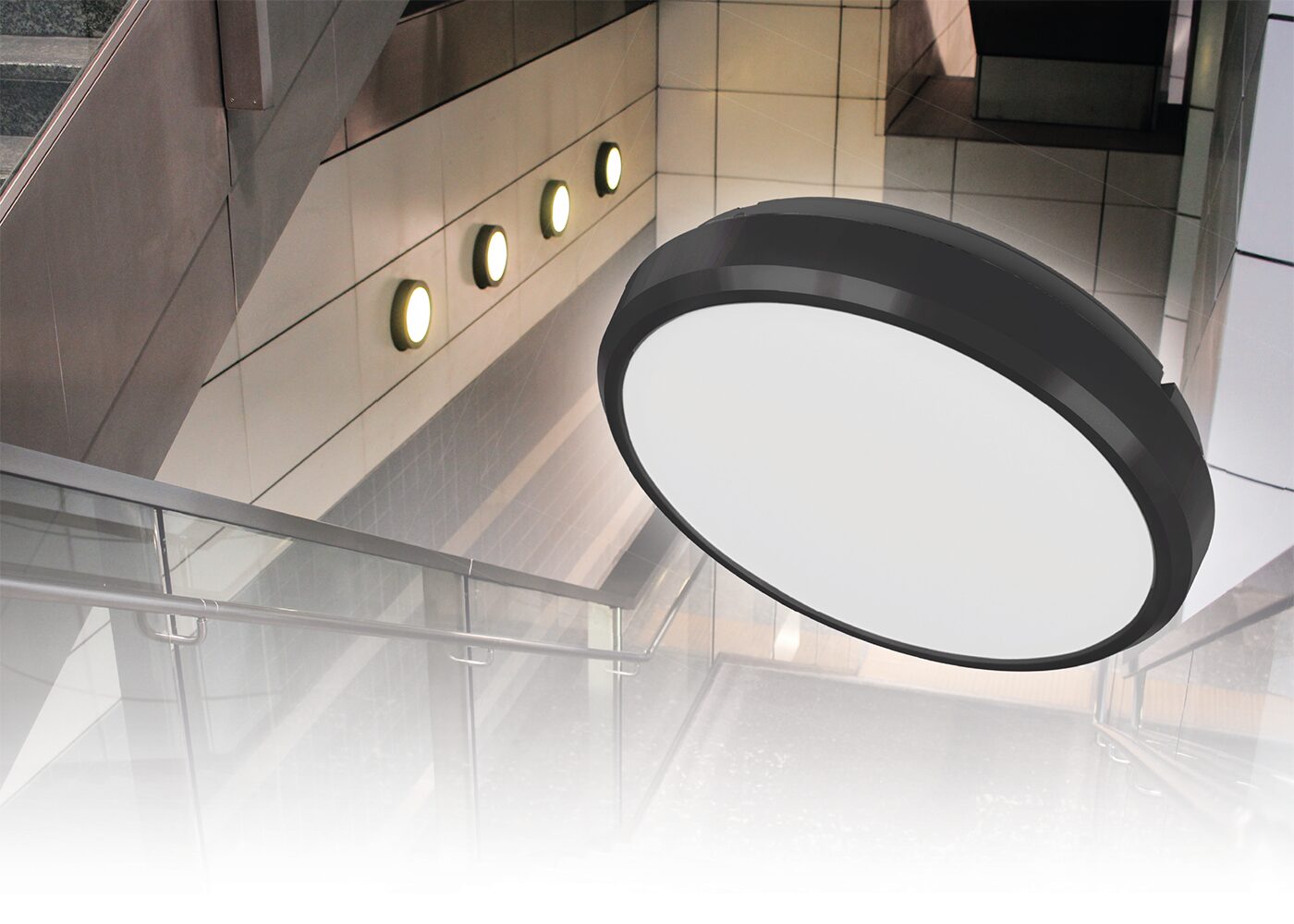

Anwendung Treppenaufgang LED Wand- und Deckenleuchte MONOVA, schwarz

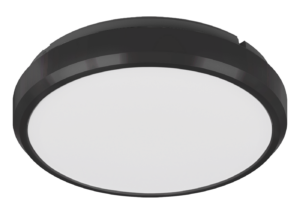

Seitliche Ansicht LED Wand- und Deckenleuchte MONOVA, schwarz

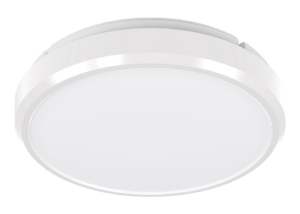

Seitliche Ansicht LED Wand- und Deckenleuchte MONOVA, weiß

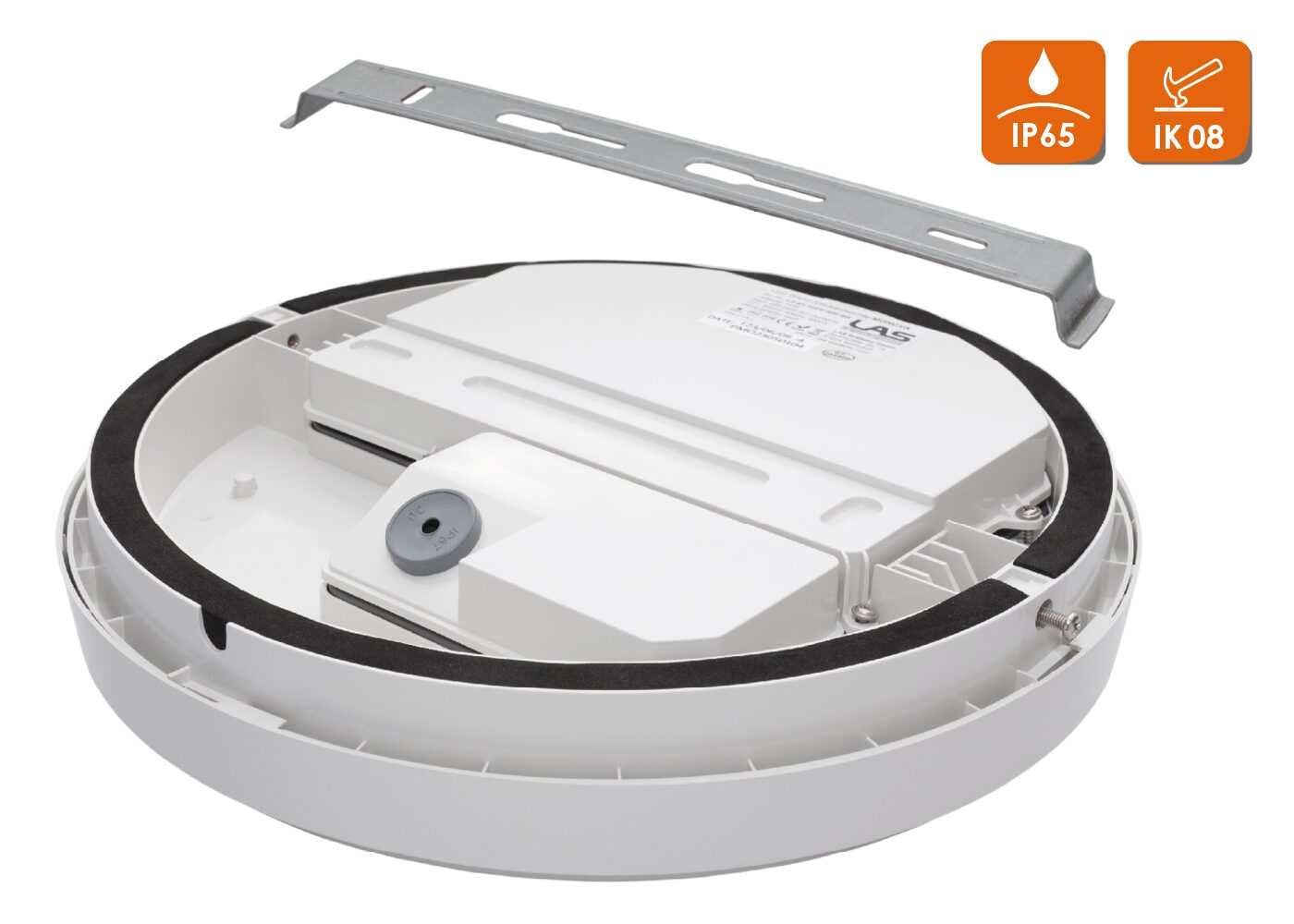

Robustes Gehäuse mit Schaumdichtung und stabilem Montagebügel — Robust, water-resistant housing with all-round foam seal and stable mounting bracket

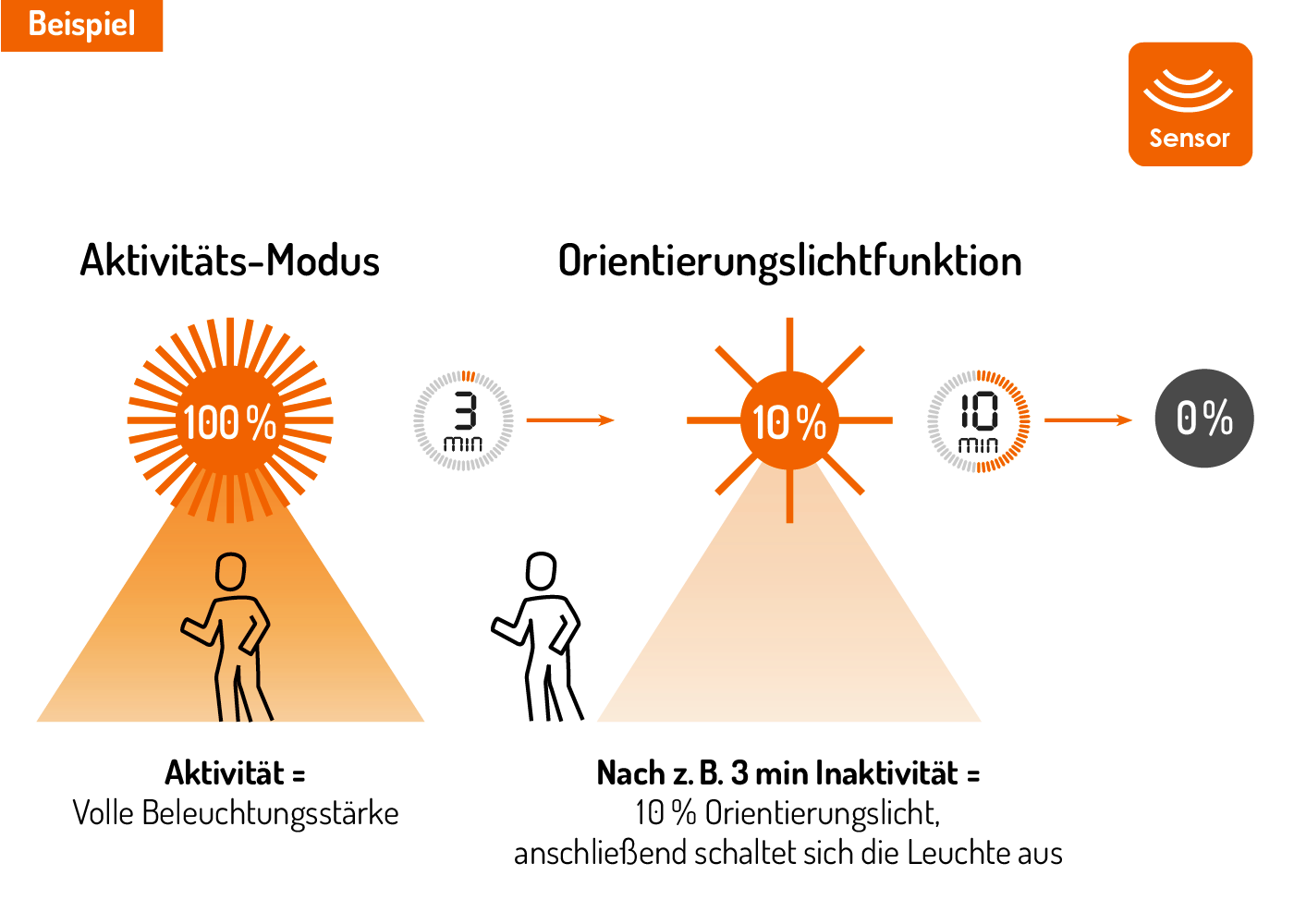

Beispielgrafik Orientierungslichtfunktion LED Wand- und Deckenleuchte MONOVA

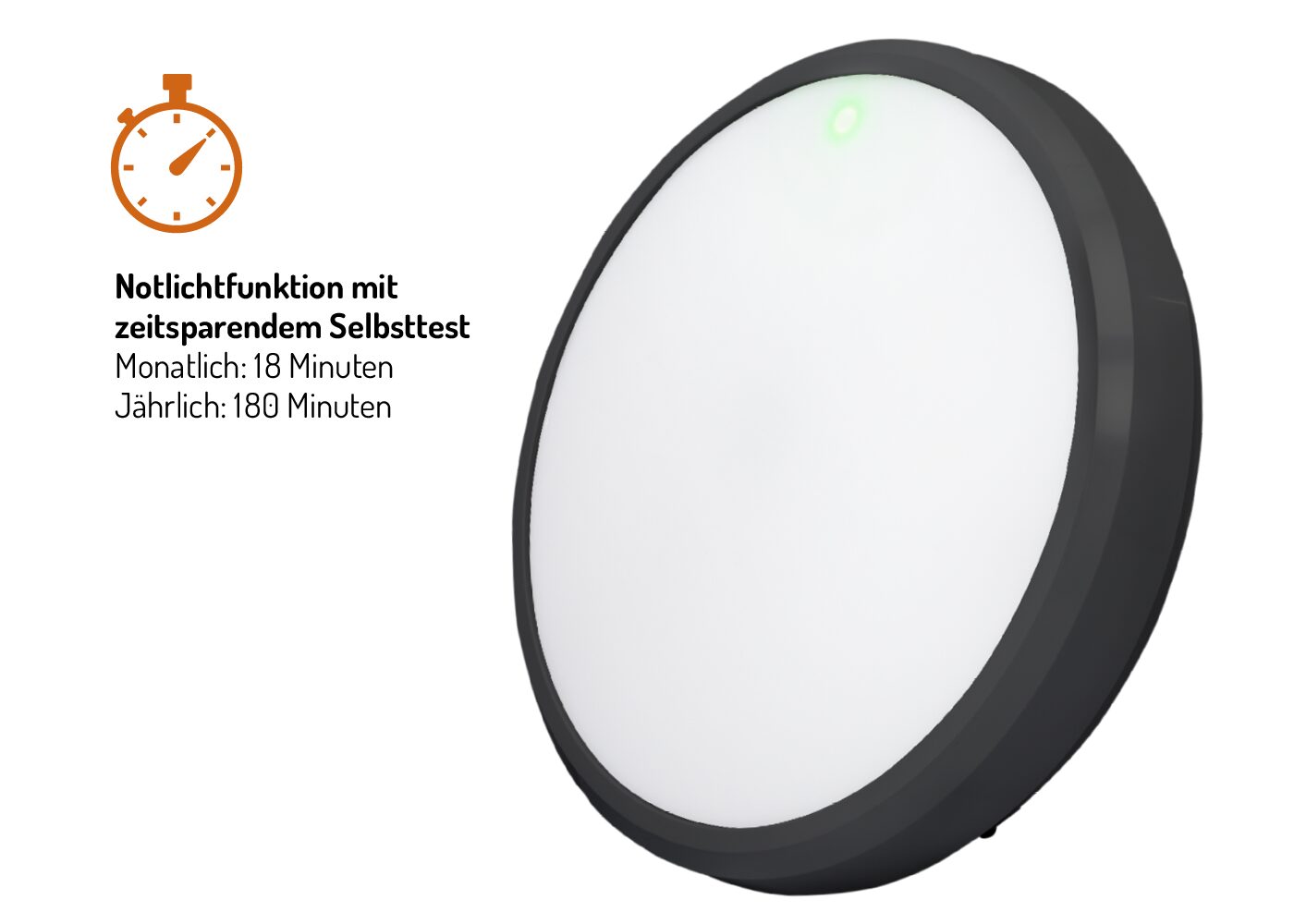

LED-Prüfstatusanzeige der Notlichtfunktion LED Wand- und Deckenleuchte MONOVA — Self-tests of the luminaire eliminate the need for mandatory, time-consuming manual tests.

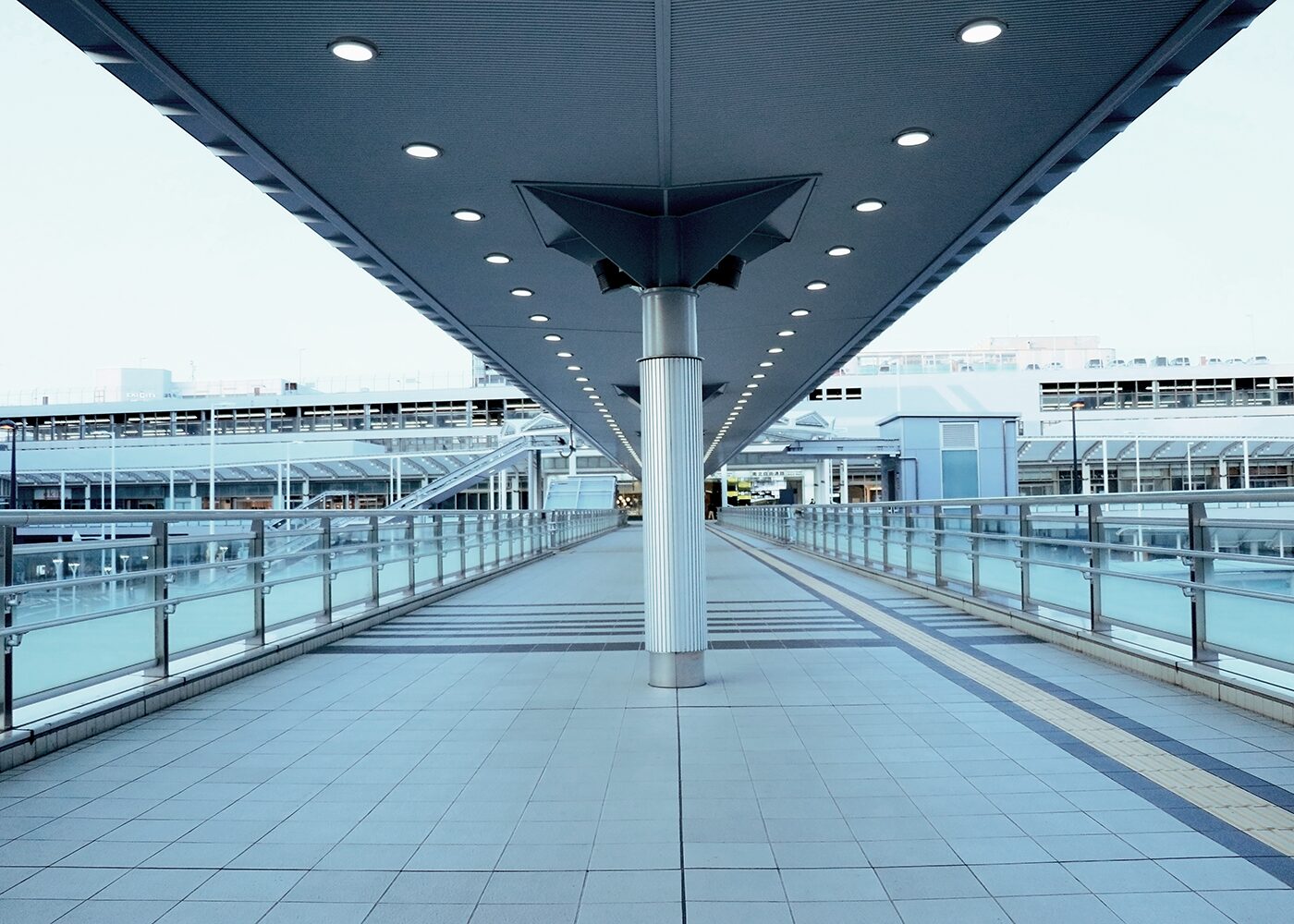

One for all – also suitable for outdoor areas (IP 65)
Variety of variants with orientation light and emergency light function
Modular design for retrofittable components
Emergency lighting with time-saving self-test
Water drain for wall mounting

Standard version

type	Article no.	Performance	Luminous flux	Light color	Beam angle	Color	Mass	Weight	Price
	LS-MV16SW30	16 W	2160 lm	3000 / 4000 / 5000 K	120°	black	Ø 295 x 57 mm	1.25 kg	Check GH price Inquiries
	LS-MV16SW30W	16 W	2160 lm	3000 / 4000 / 5000 K	120°	white	Ø 295 x 57 mm	1.25 kg	Check GH price Inquiries

with motion detector and orientation light function

type	Article no.	Performance	Luminous flux	Light color	Beam angle	Color	Mass	Weight	Price
	LS-MV16SW30-MS	16 W	2160 lm	3000 / 4000 / 5000 K	120°	black	Ø 295 x 57 mm	1.30 kg	Check GH price Inquiries
	LS-MV16SW30W-MS	16 W	2160 lm	3000 / 4000 / 5000 K	120°	white	Ø 295 x 57 mm	1.30 kg	Check GH price Inquiries

with emergency light function*

type	Article no.	Performance	Luminous flux	Light color	Beam angle	Color	Mass	Weight	Price
	LS-MV16SW30-EM	16 W	2160 lm	3000 / 4000 / 5000 K	120°	black	Ø 295 x 57 mm	1.30 kg	Check GH price Inquiries
	LS-MV16SW30W-EM	16 W	2160 lm	3000 / 4000 / 5000 K	120°	white	Ø 295 x 57 mm	1.30 kg	Check GH price Inquiries

with motion detector, orientation light and emergency light function*

type	Article no.	Performance	Luminous flux	Light color	Beam angle	Color	Mass	Weight	Price
	LS-MV16SW30-ES	16 W	2160 lm	3000 / 4000 / 5000 K	120°	black	Ø 295 x 57 mm	1.30 kg	Check GH price Inquiries
	LS-MV16SW30W-ES	16 W	2160 lm	3000 / 4000 / 5000 K	120°	white	Ø 295 x 57 mm	1.30 kg	Check GH price Inquiries
